POCSAG Paging
| BRIGHTON = BOGNOR REGIS = = |
MB7PBH MB7PBR |
DAPNET is the system that runs all
Q&A DAPNET DokuWiki
UK Facebook Group
Hardware and Make Account
To receive POCSAG you will need to -

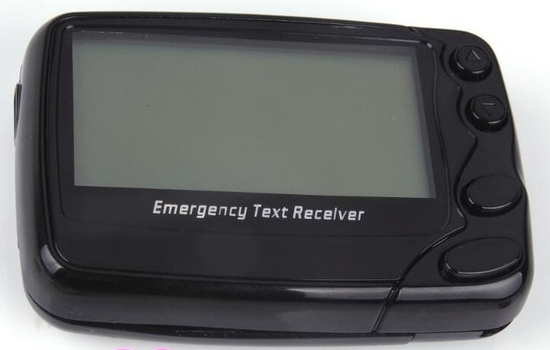

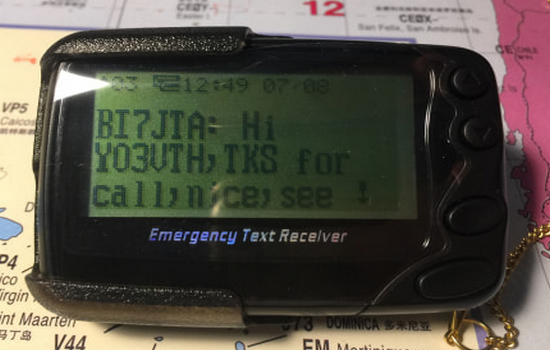

*** BUY a PAGER ***
and
MAKE an Account on DAPNET
Pager needs to be on Freq 439.9875MHz
Most Hotspot via Pi-Star can also offer POCSAG
You will need to register as a Personal Hotspot Transmitter
List of rubrics
In the UK you can receive from UK-ALL and ALL rubrics to your pager
The MAX you can have is 7 per pager, plus your ID
rubrics = Groups
| UK rubrics uk-safe-sw 1011 uk-all uk-safe-ee 1012 uk-all uk-safe-em 1013 uk-all uk-safe-wm 1014 uk-all uk-safe-yh 1015 uk-all uk-safe-ne 1016 uk-all uk-safe-nw 1017 uk-all uk-safe-wl 1018 uk-all uk-safe-ni 1019 uk-all uk-safe-dg 1020 uk-all uk-safe-ta 1021 uk-all uk-safe-st 1022 uk-all uk-safe-gr 1023 uk-all uk-safe-he 1024 uk-all uk-safe-os 1025 uk-all uk-safe-se 1026 uk-all uknews 1027 uk-all uk-suffolk 1065 uk-all uk-sussex 1066 uk-all |
|
Sending Messages via Dapnet Dashboard
Send messages to a pager via Dapnet Dashboard New Call
Sending messages to a Rubrics Group
You need to be an Admin of a group to send messages.
To become a Admin contact the Rubrics Owners
Brandmeister Messages to POCSAG via DMR Radio
You can send a message to the Brandmeister-POCSAG-gateway with the private contact 262994.
The content of the message has to be structured as followed:
"Callsign message text“, e.g. OE7SRI Hello from Smith
The text message is then forwarded to the RIC, which is connected to that call sign and you get a confirmation
"Hi! Your message to OE7SRI has been sent with your callsign“.
Phoenix UK and DMRplus-IPSC2-Repeaters
Messages to POCSAG
Same as above but -
You have to send a message to talkgroup 5066 (be aware: NOT private Call!).
(Messages is sent out via ALL group on all networks world wide)
You can send messages over DMR to each other.
But you have to keep your radio turned on to receive messages.
Now with POCSAG you can send messages to a pager via Dapnet Dashboard New Call or a DMR radio via all networks. (Brandmeister, Phoenix, DMR+, Hotspots)(Cross Network messages)
As long as your pager is within range of the Transmitter or Hotspot running POCSAG.
MB7PBC is 7w out and will have just a smaller footprint than GB7BC at 10w out.
It is meant to cover Brighton more due to the antenna location facing west.
MB7PBH will cover along the same lines as GB7BH but at a lower power.
Between MB7BC and MB7BH we should have a nice coverage for Brighton.
A pager cost around £60 and £65 with charger. Charger is not really required to be honest as you can swap out rechargeable batteries as required. (You can only charge batteries in the unit with its own charger)
You can use with your Pi-Star Hotspot that offer POCSAG.
(DVMega needs new firmware when it comes out at a latter date)
I believe at some point you will also be able to send messages via the Pi-Star dashboard when that feature is added.
Will keep you all updated when we have more news.
More info will be added over time
