Welcome to my 3D prints

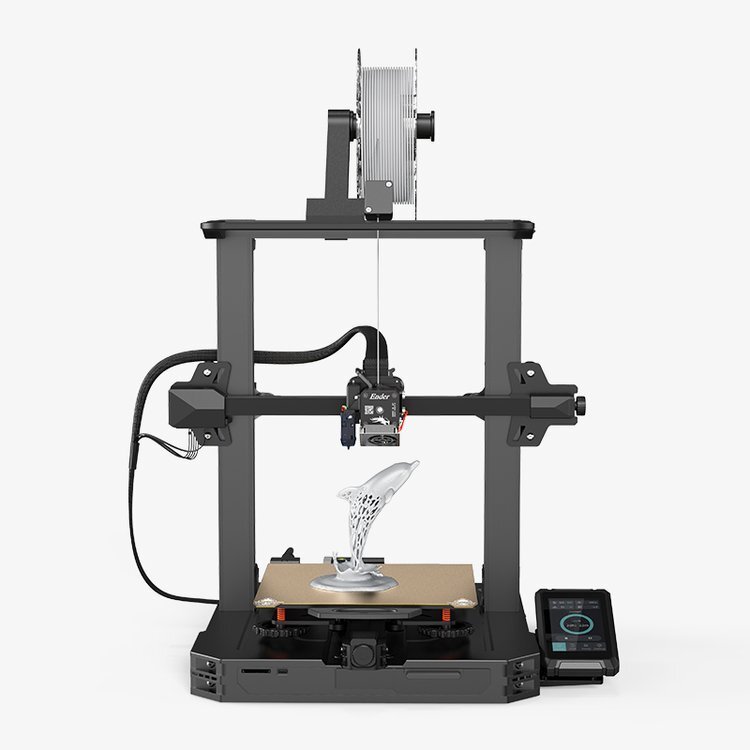

Printer is an Ender 3 S1 Pro that I got in October 2023

https://www.crealityofficial.co.uk/products/creality-ender-3-s1-pro-3d-printer-uk

Upgrades on the printer.

X Y Linear Rails for Creality Ender3 S1 Pro 3D printer
Z-axis upgrade for CREALITY Ender 3 S1 Pro
X45 Sprite CR Touch Probe Zero Y-Offset Mount v1.1 (Ender-3 S1 Pro and similar) but have since moved to this one Zero Y-Offset + 5015 Fan Backplate for Sprite Pro
Heartbreaker MK5 a Dual 5015 Fan Cooling System for Sprite Pro
Creality Sonic Pad Control Screen that run on a Creality version of Klipper
Creality Official Cooling Fan Kit with this added, Fan Cooling Kit Duct
Creality Official Ender 3 Glass Bed Upgraded. With the glass side up
Elmer's Disappearing Purple Glue Sticks

Software

Orca Slicer on Windows 10

This is some of what I have printed to date.
Photos taken on a Samsung S22+. Not idea, but they came out OK.

Flowers

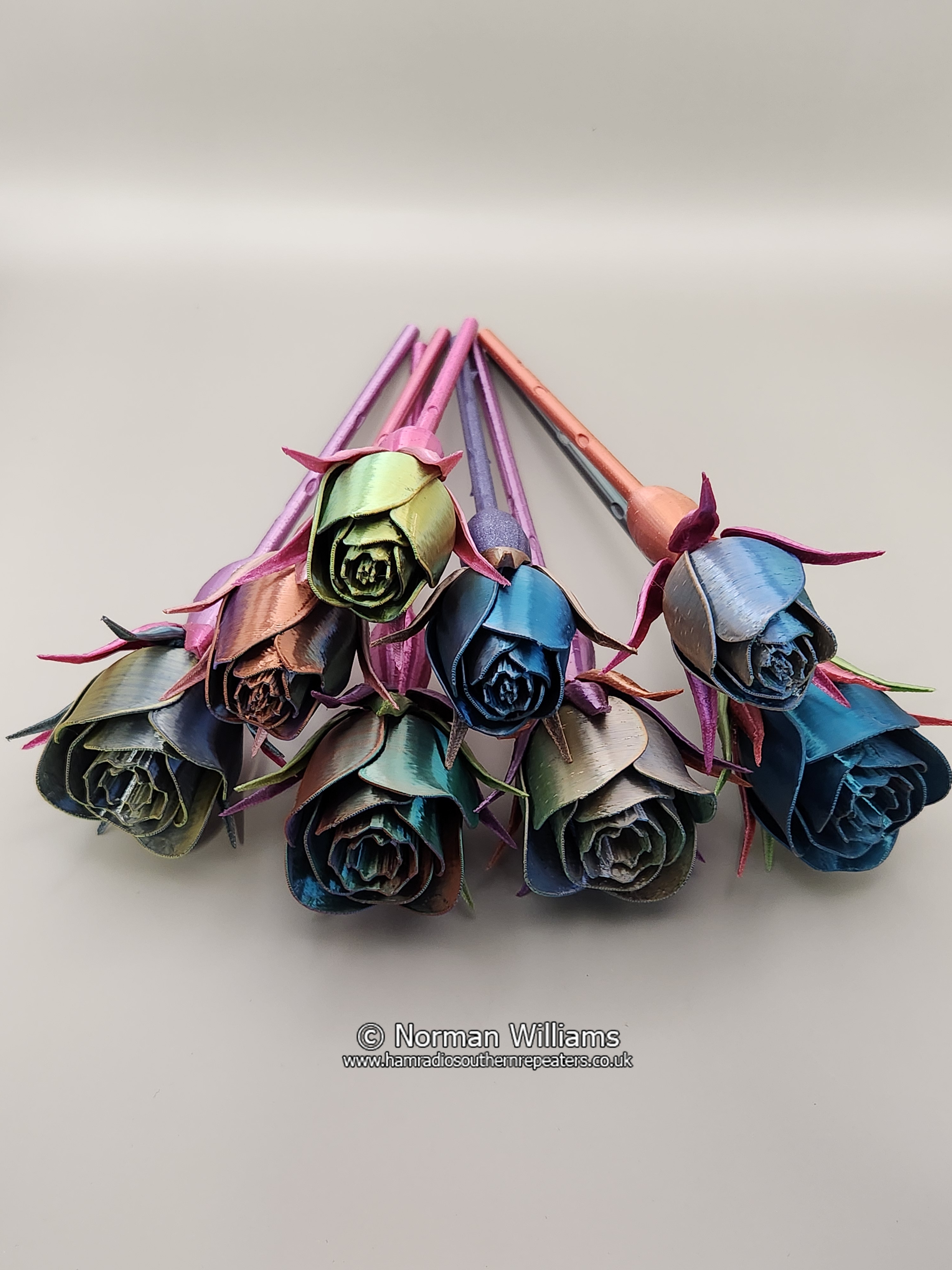

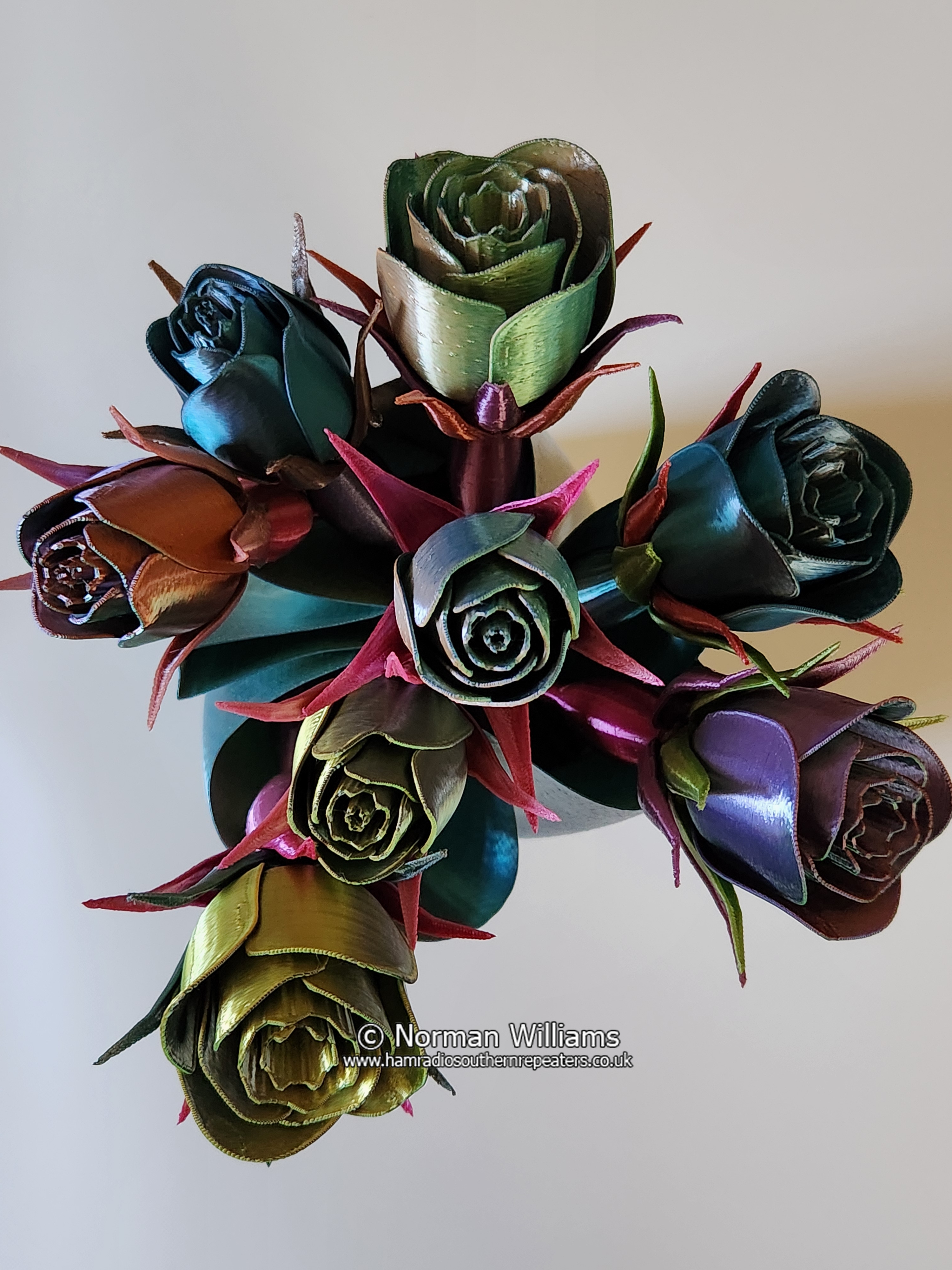

Photo 1 & 2 = Rose with Stem. 2 x Printed in eSUN Silk Tri-Colors PLA, Gold Green and Black, 2 x Blue Orange and Green and 2 x Bronze Purple and Green. 2 x Sovol Silk Shiny Multicoloured Fast Gradient Change Rainbow PLA.
Roses, 0.2 layer height and Line width, 0.45. Speed 200mm/s after 1st two layers at 60mm/s. Print time 1Hrs 32m per pair. Steams and Sepal, Sovol Silk Shiny Multicoloured Fast Gradient Change Rainbow PLA. Steams 1hr 45m each, 180mm long and Sepal 35m each.

Dragons

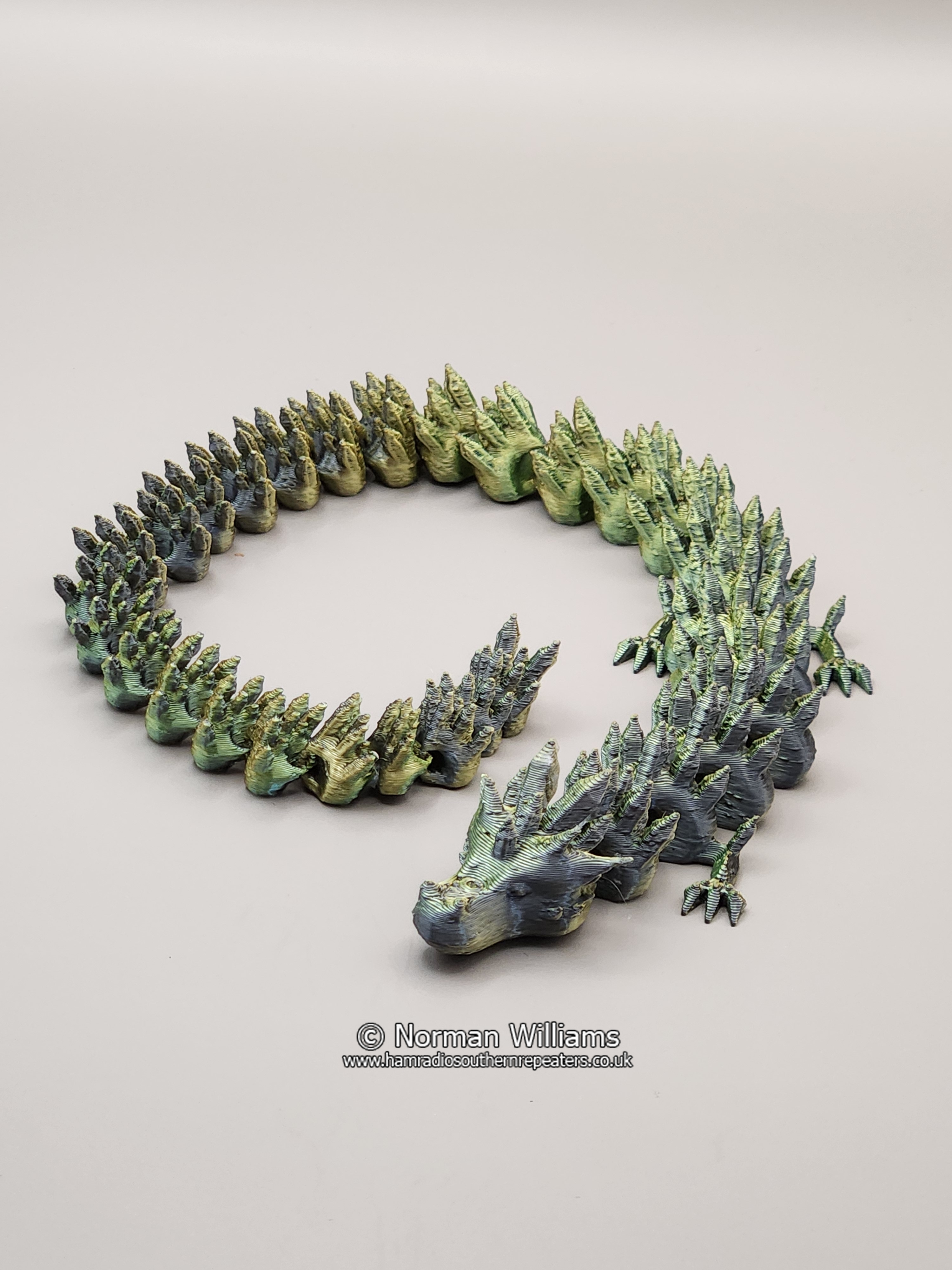

Photo 1 = Articulated Crystal Dragon V2 Printed in eSUN Silk Tri-Colors PLA, Gold Green and Black. 0.2 layer height and Line width, 0.45. Speed 100mm/s after 1st two layers at 35mm/s. Print time 3Hrs 14m.

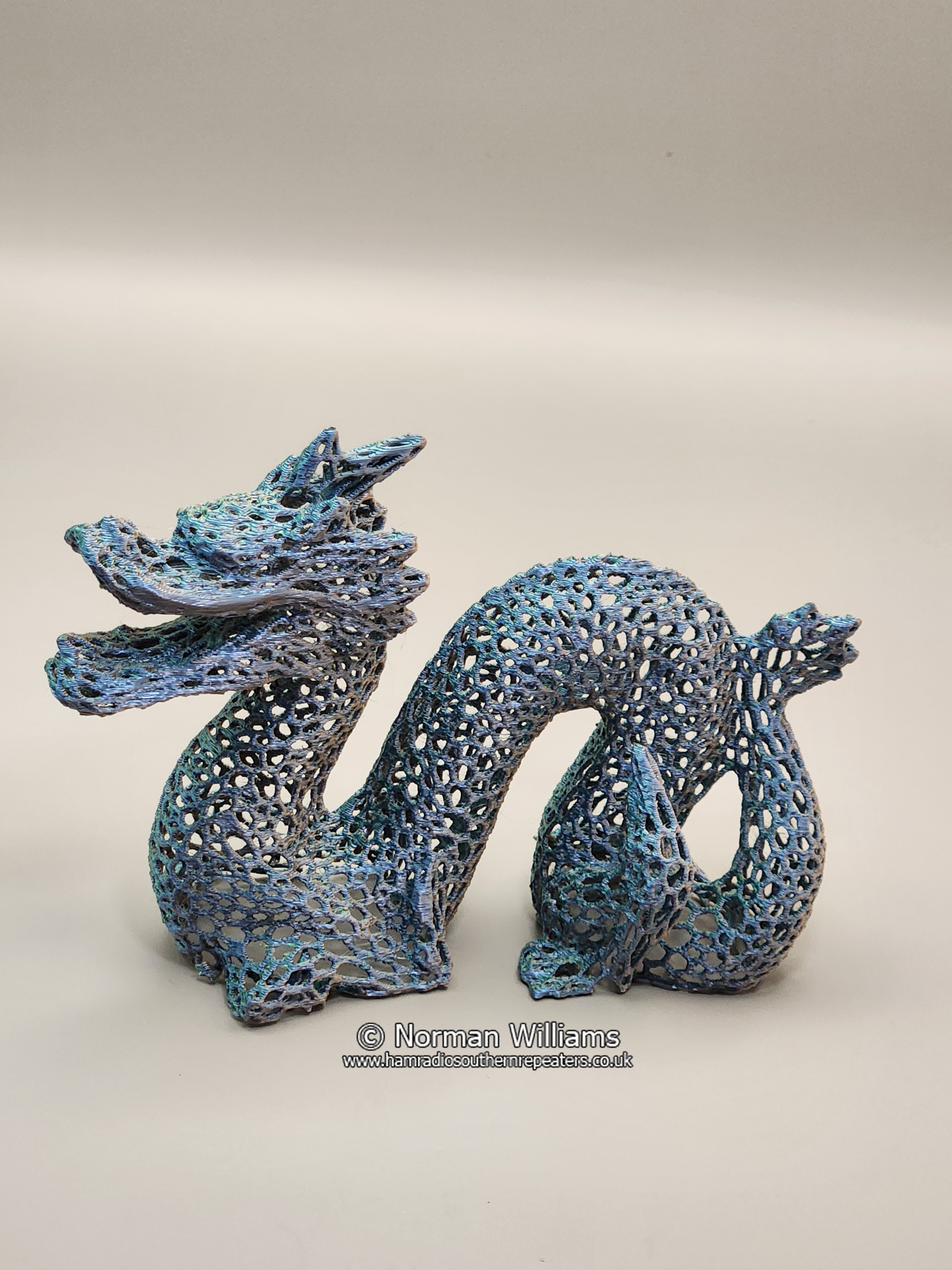

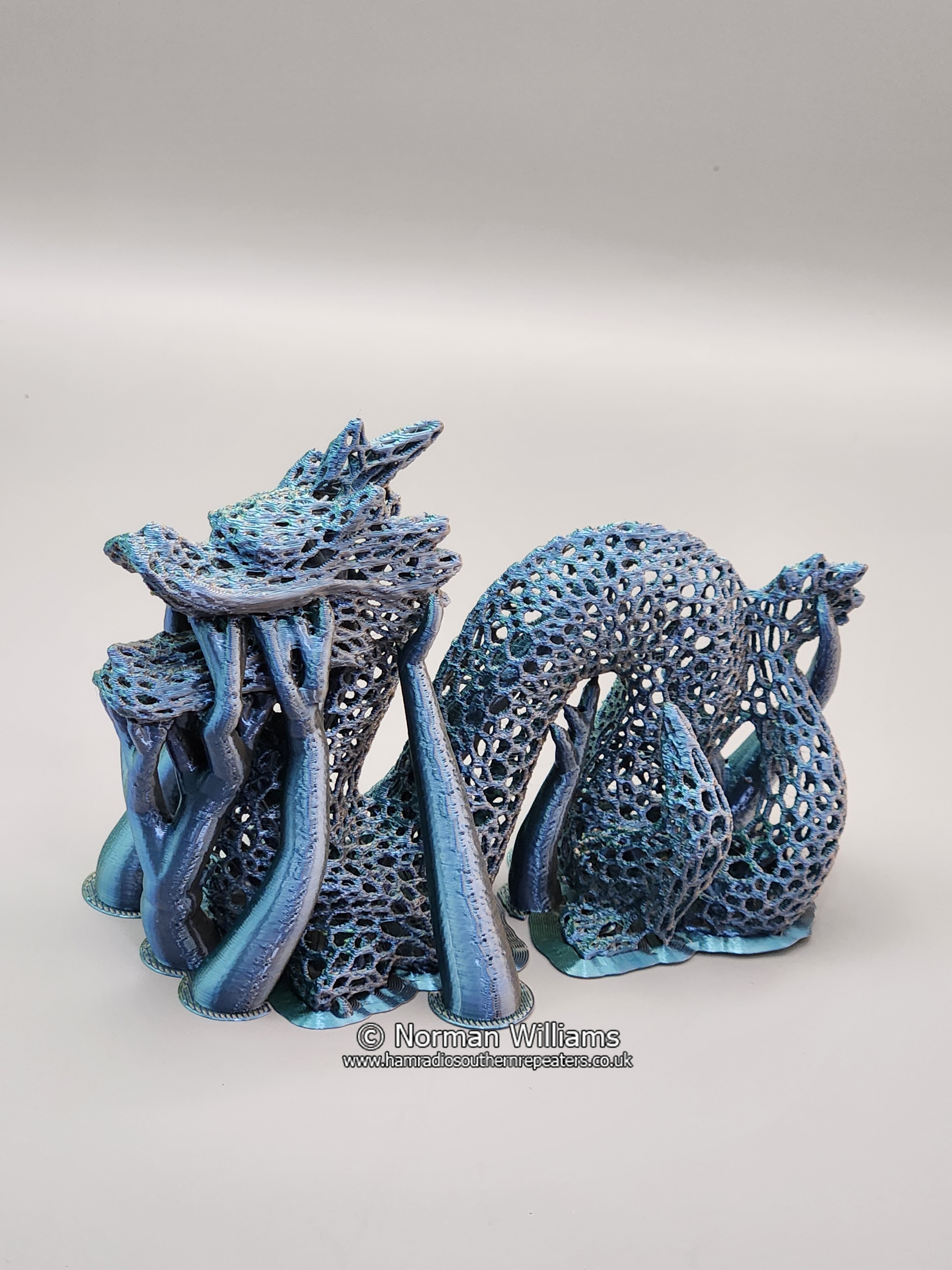

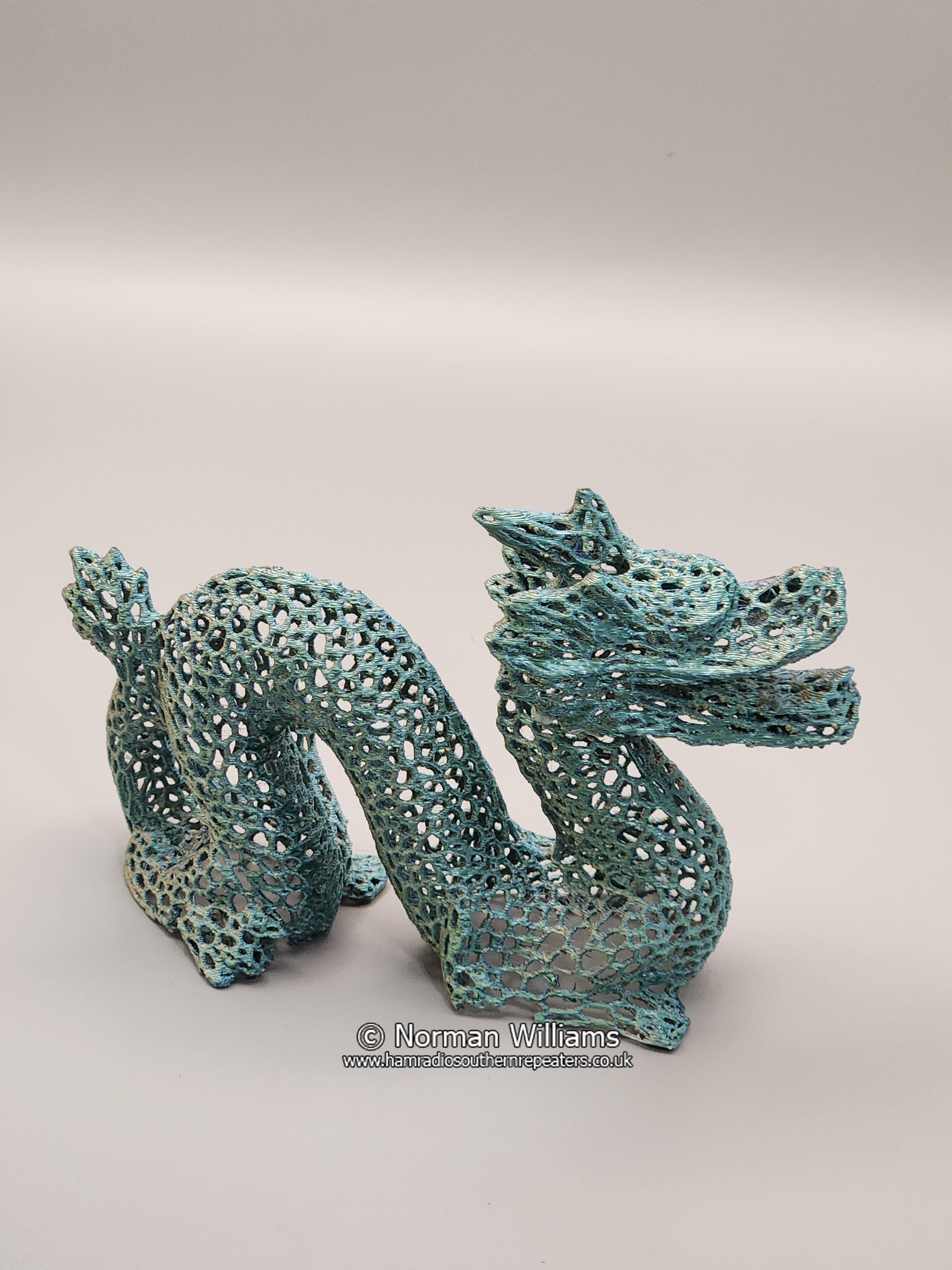

Photo 2, 3 & 4 = Voronoi Dragon Printed in eSUN Silk Tri-Colors PLA, Blue Orange and Green. 0.2 layer height and Line width, 0.45. Speed 200mm/s after 1st two layers at 60mm/s. Print time 5Hrs 40m.

Vases

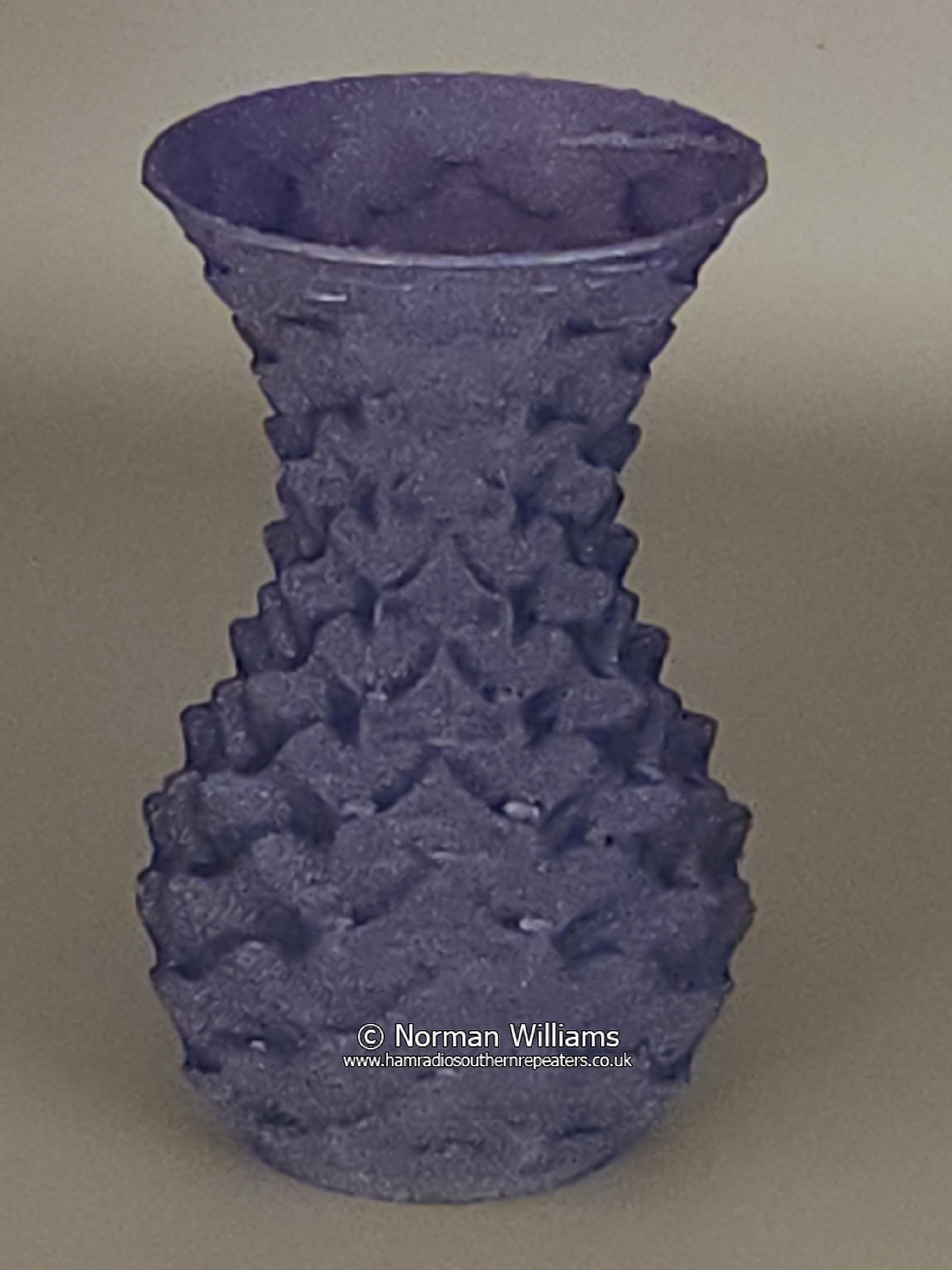

Photo 1 = Dragon Vase - med (Not the best vase as full of holes) But will do to test filament.
Printed in Ziro Glitter Lavender PLA. 0.06 layer height and Line width, 0.45. In spiral vase mode. Speed varied between 40 - 76mm/s. Size was 63 x 100mm. Print time 1hr 25m. (Filament is nice and just needs the correct model)

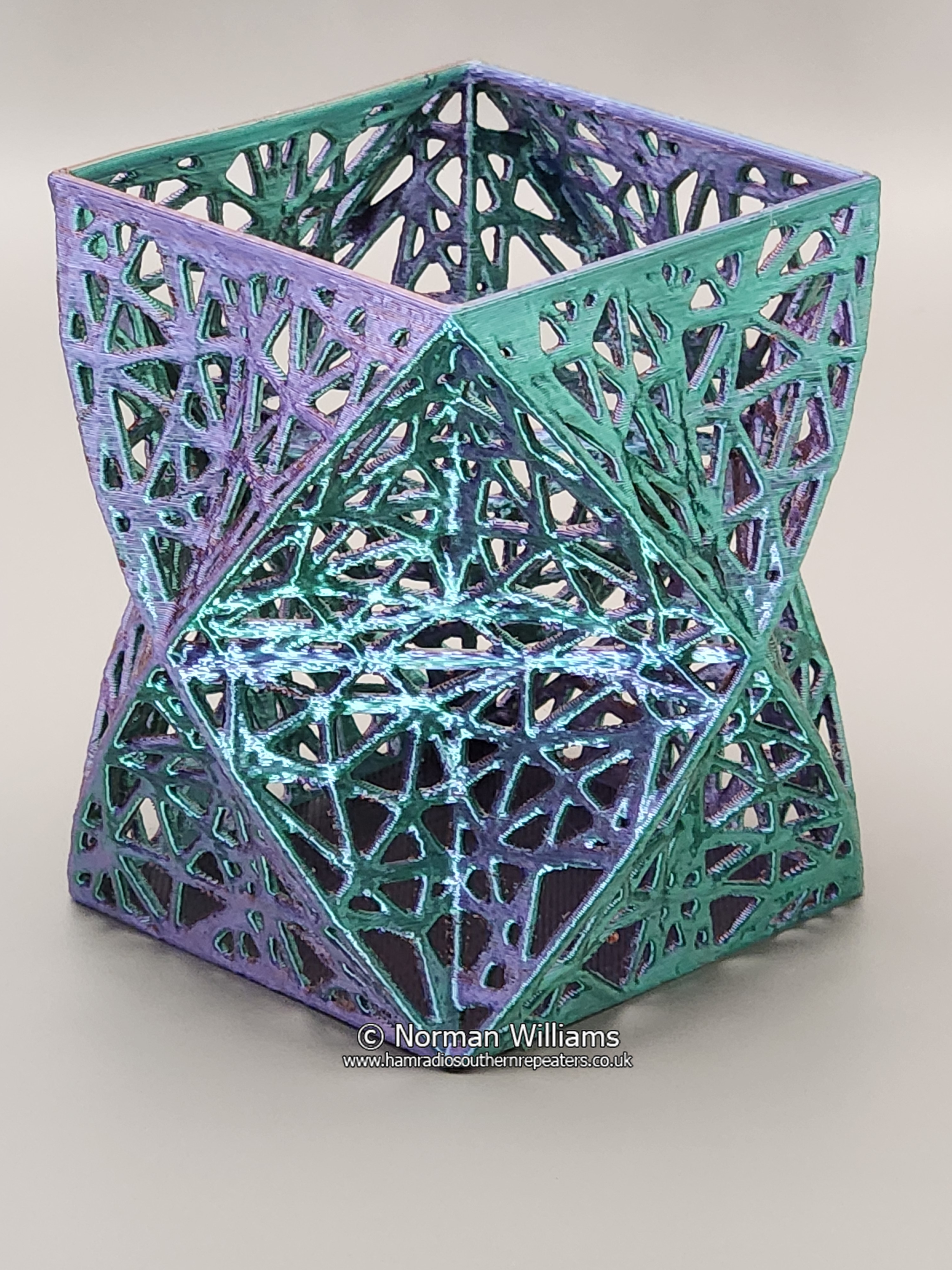

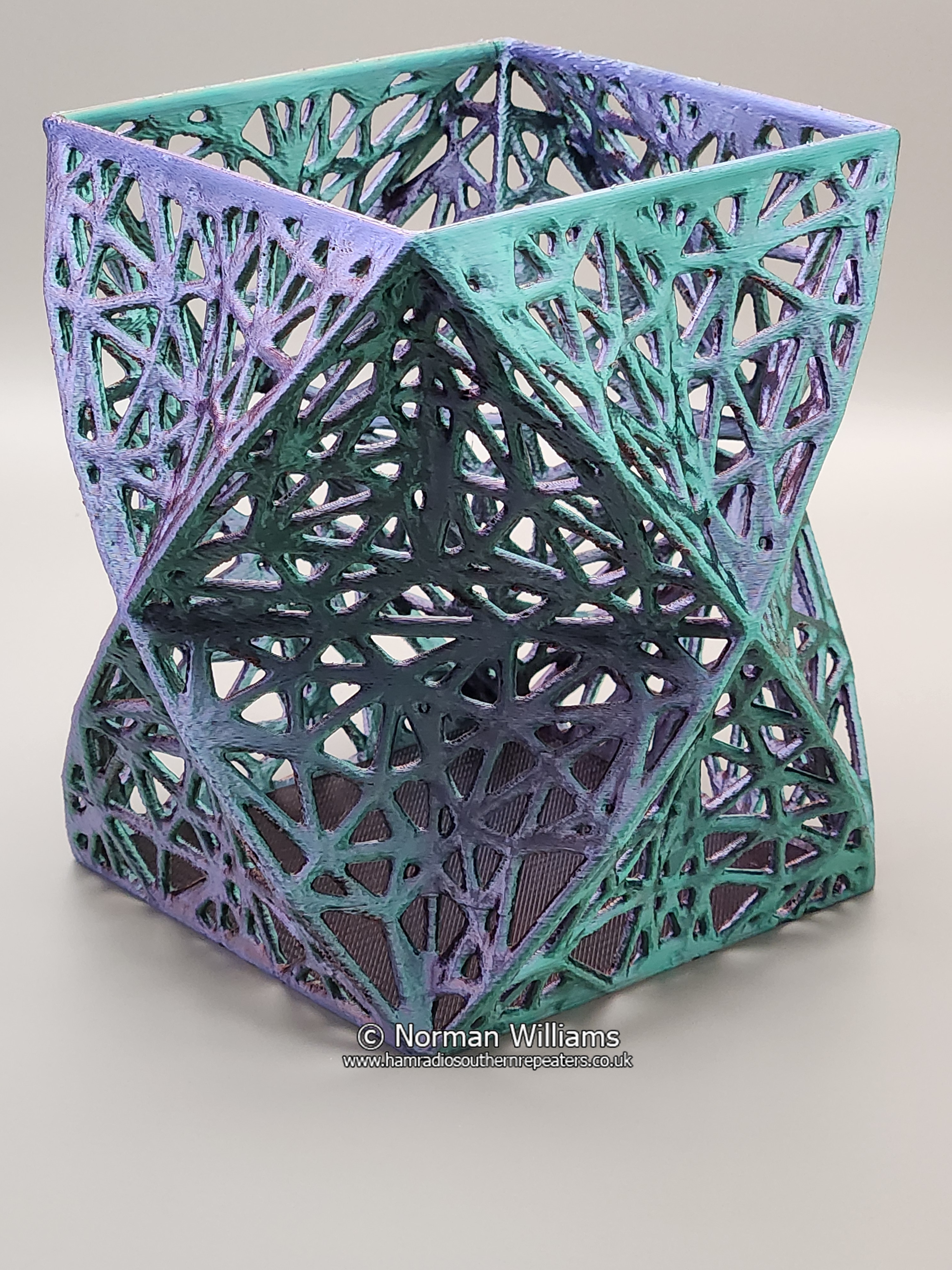

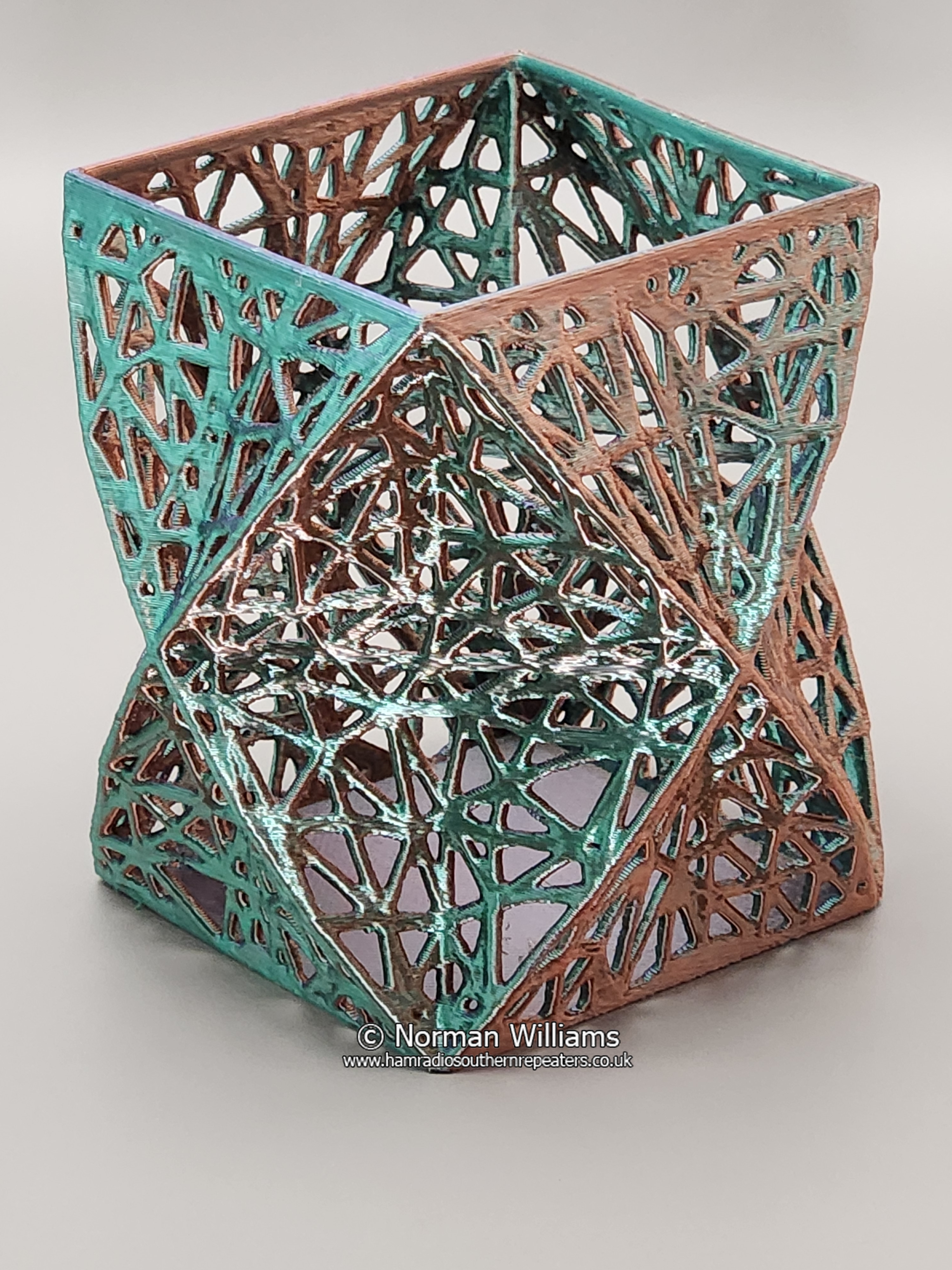

Photo 2 & 3 = Voronoi Vase. Printed in eSUN Silk Tri-Colors PLA, Bronze, Purple and Green. 0.2 layer height and Line width, 0.45. Speed as above. Size was 87 x 87 x 81mm. Print time 5Hrs. Video of Voroni Vase

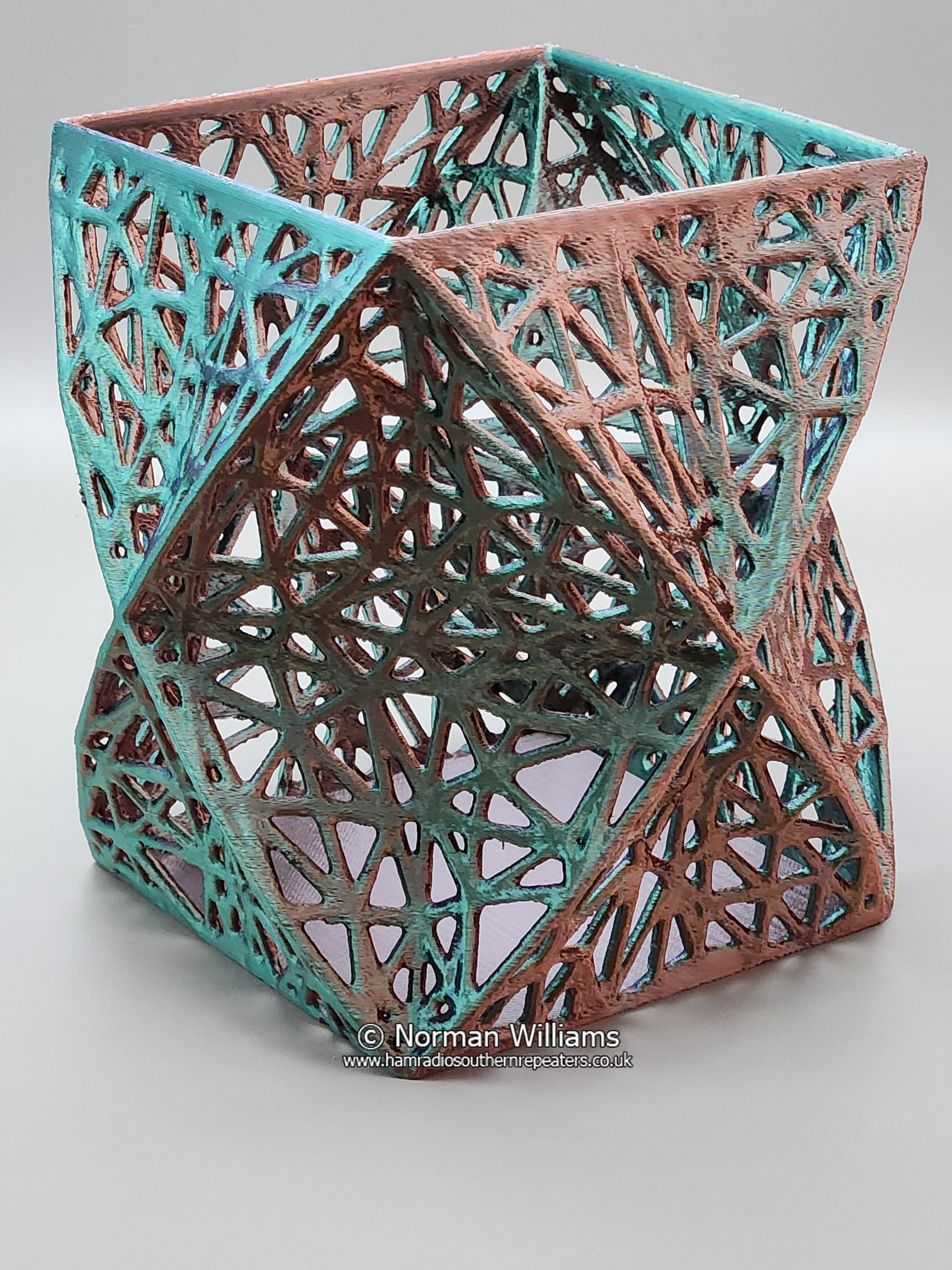

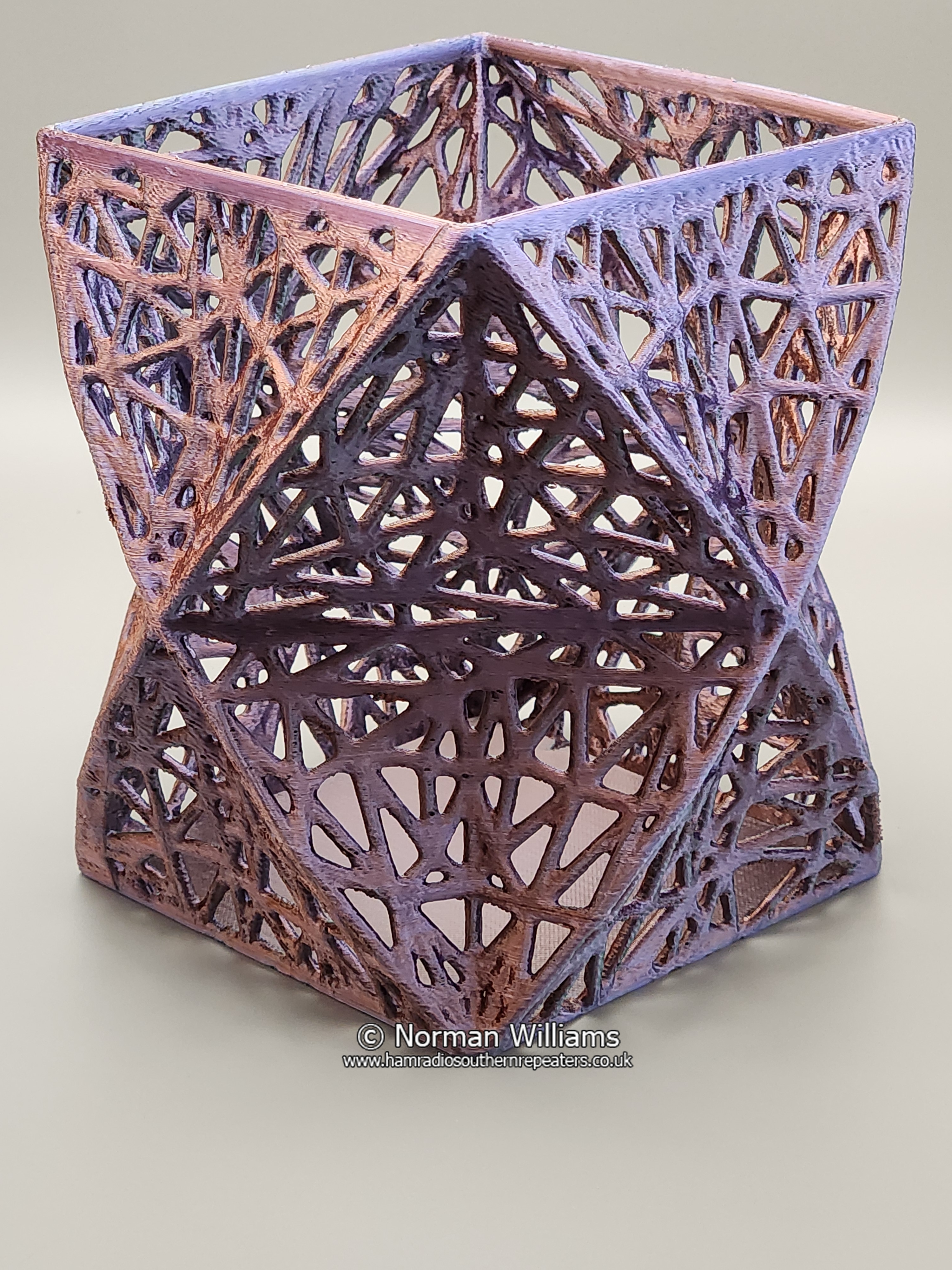

Photo 4, 5 & 6 = 0.14 layer height and Line width, 0.4. Enlarged Size 139 x 139 x 130mm. Speed varied between 40 - 280mm/s. Print time 21Hrs. Video of Voroni Vase 2

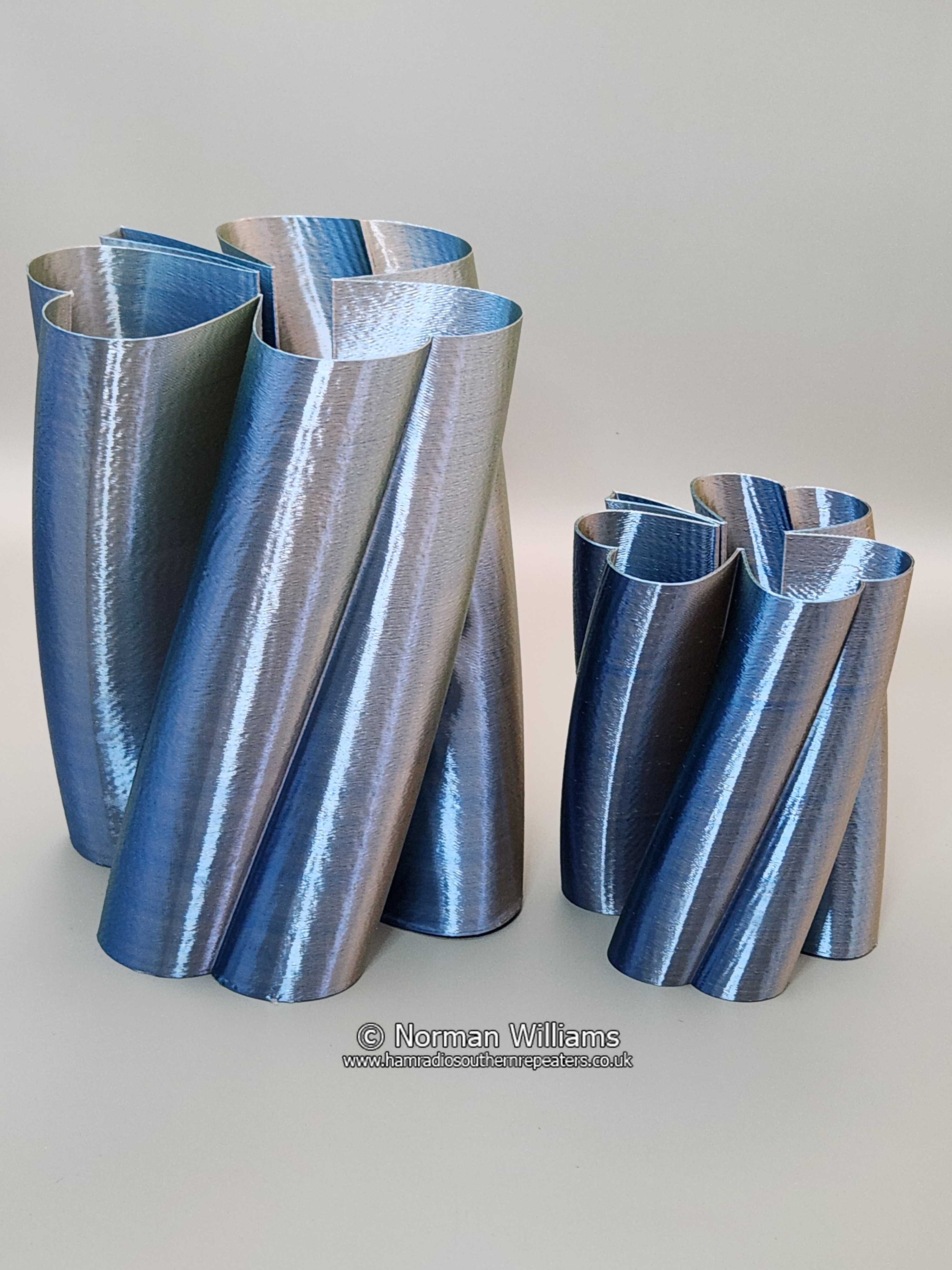

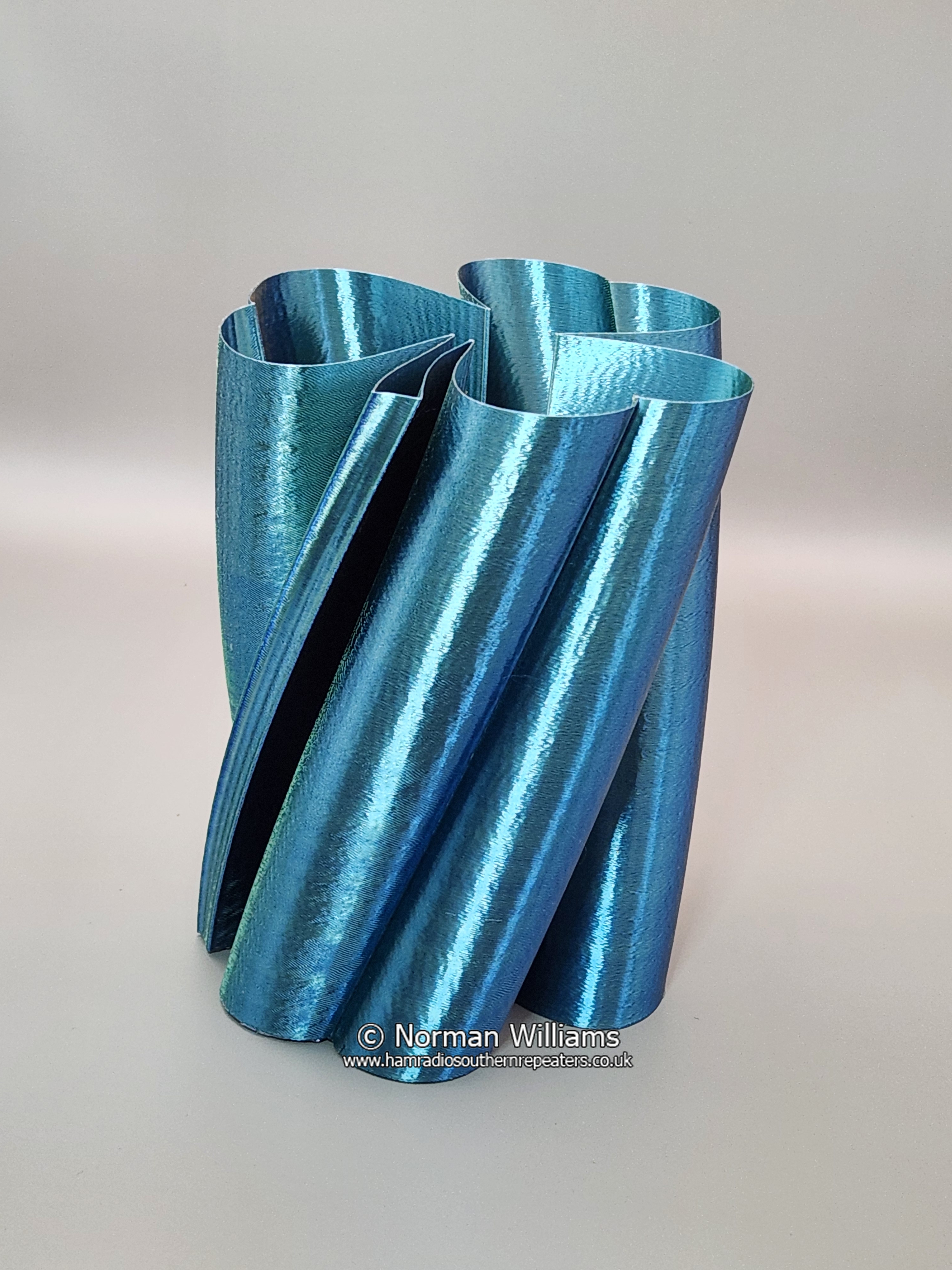

Photo 7 = Shamrock Vase. Scale 50%, in sparel vase mode, 119 x 114 x 150mm. Printed in eSUN Silk Tri-Colors PLA, Blue Orange and Green. 0.08 layer height and Line width, 0.45. Speed 200mm/s after 1st two layers at 60mm/s. Print time 3Hrs 40m.

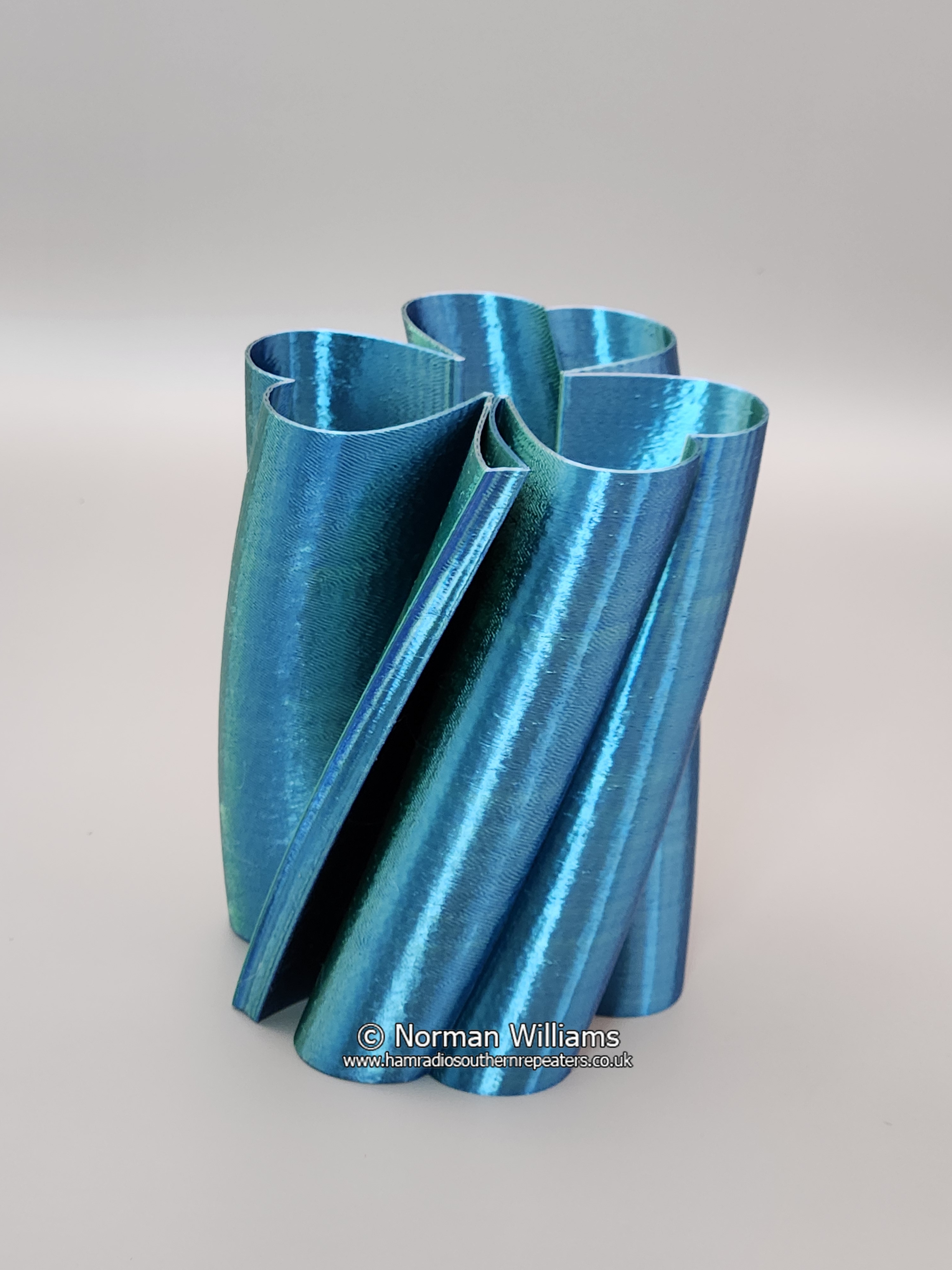

Photo 8 = Shamrock Vase. Scale 33%, 2 walls, 80 x 76 x 100mm. Printed in eSUN Silk Tri-Colors PLA, Blue Orange and Green. 0.08 layer height and Line width, 0.45. Speed 80mm/s after 1st two layers at 60mm/s. Print time 3Hrs 55m.
Photo 9 = 7 & 8 next to each other.

Hands

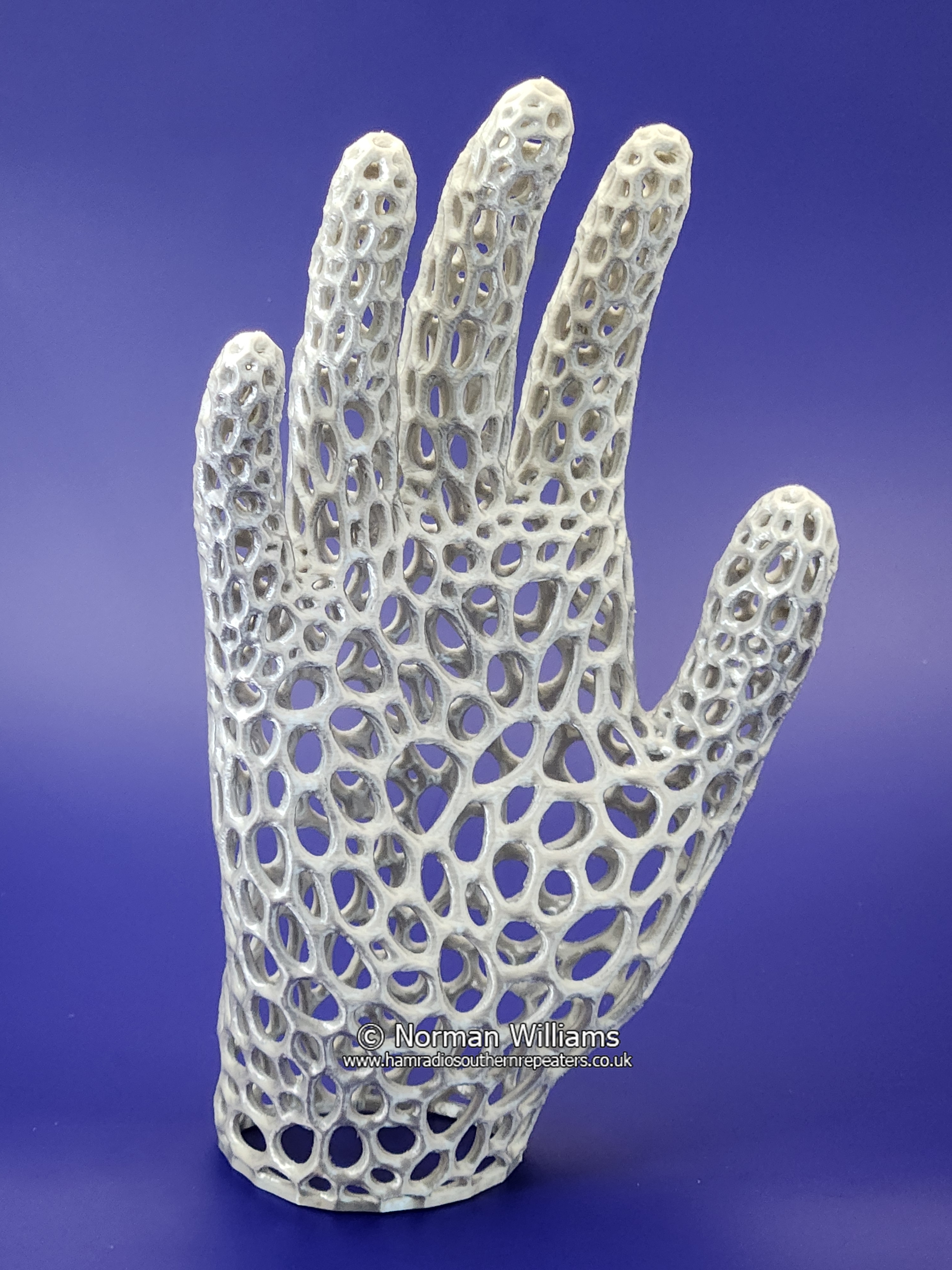

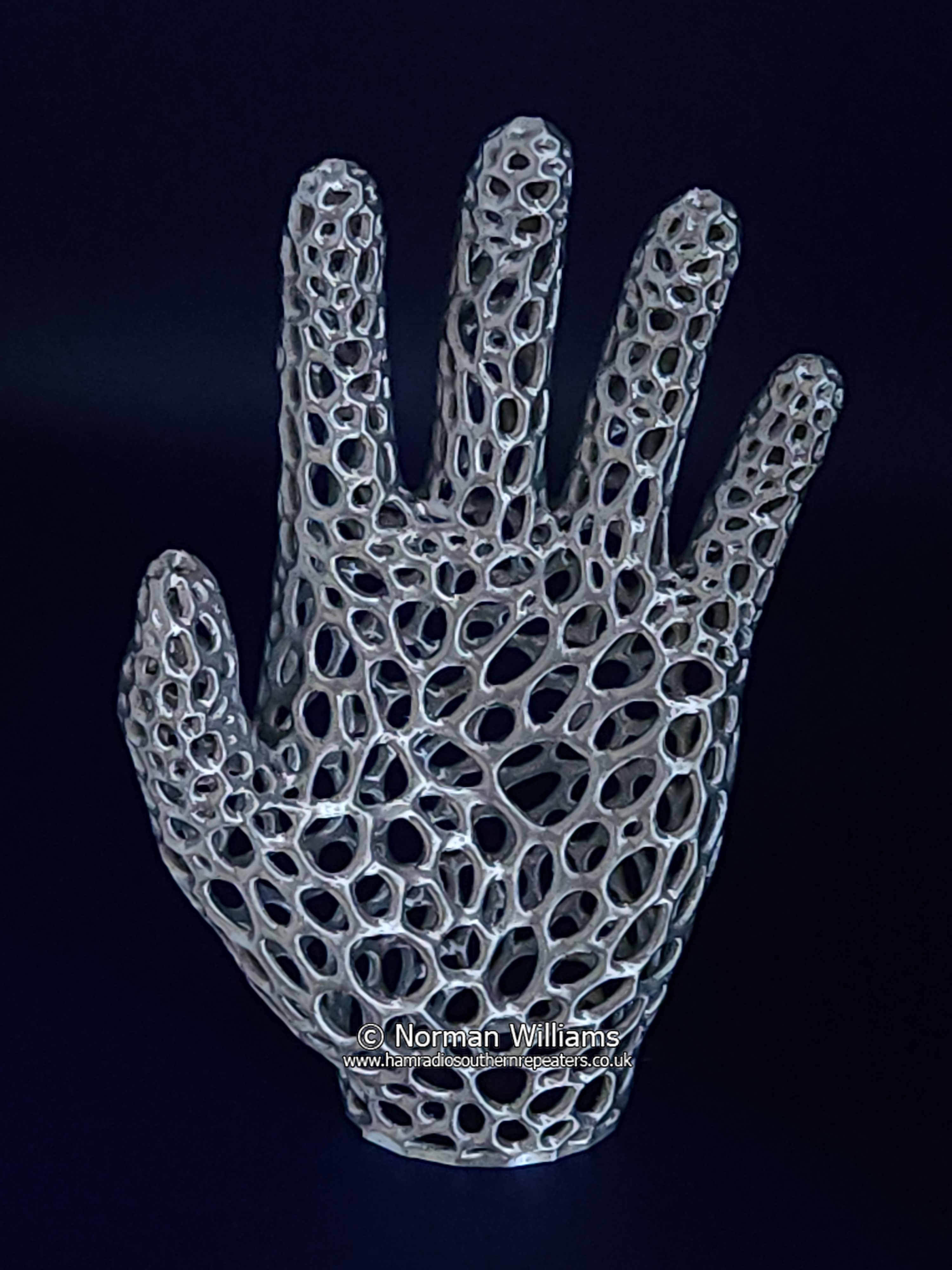

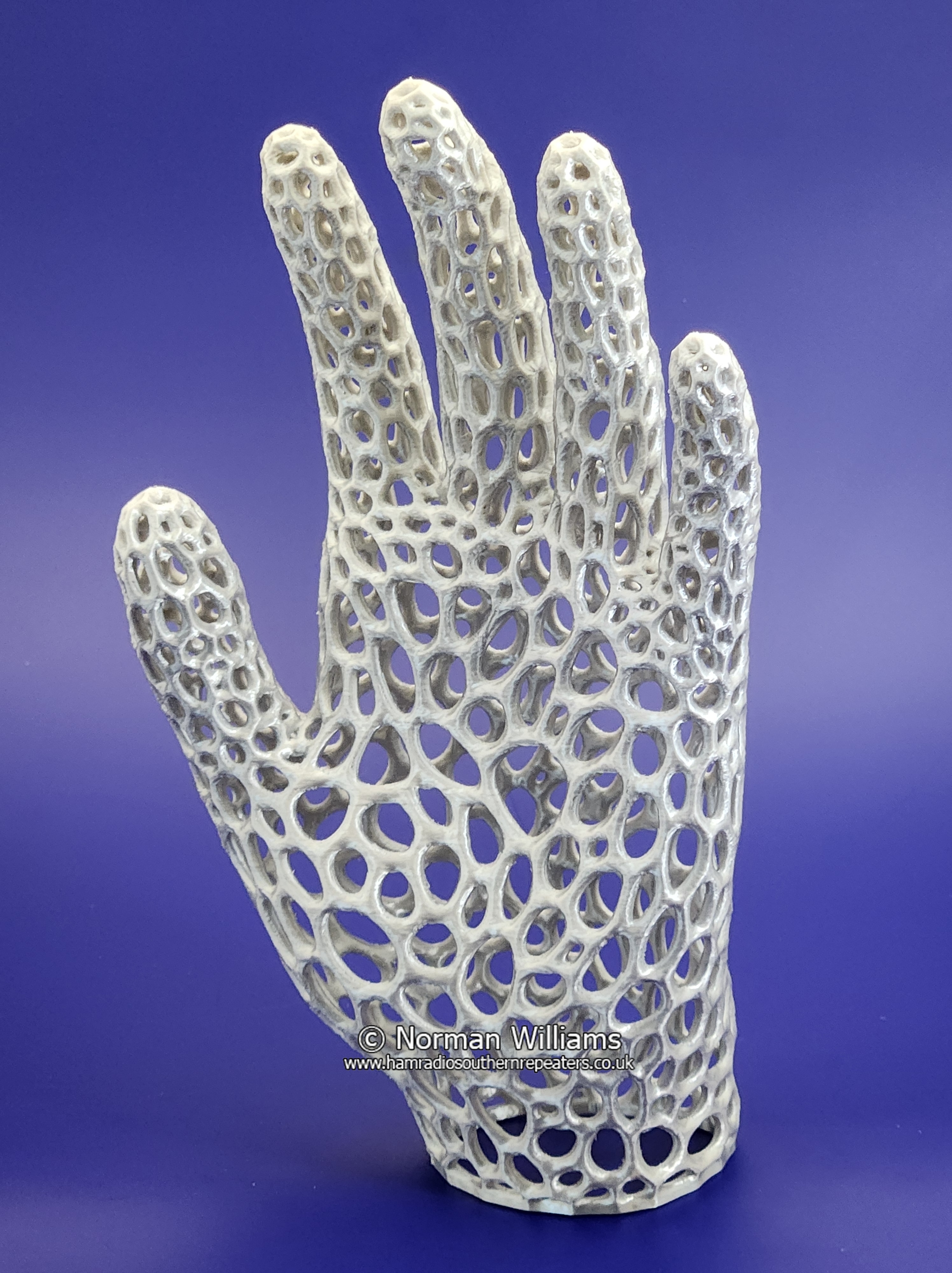

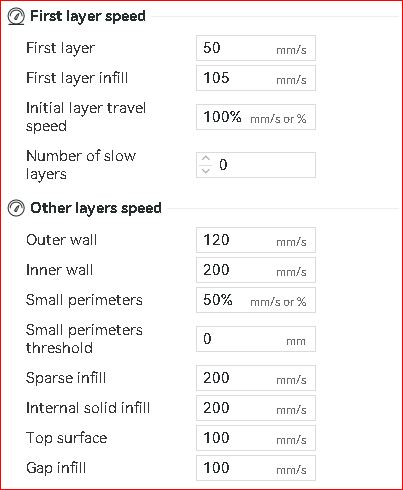

Photo 1, 2 & 3 = Bionic Hand art - Standard. Right Hand - Kipper settings, Started at default speed and then increased by 20%. Took 12Hrs @ 0.14 layer height and Line width 0.40. Filament eSun Silk Metal PLA Silver.

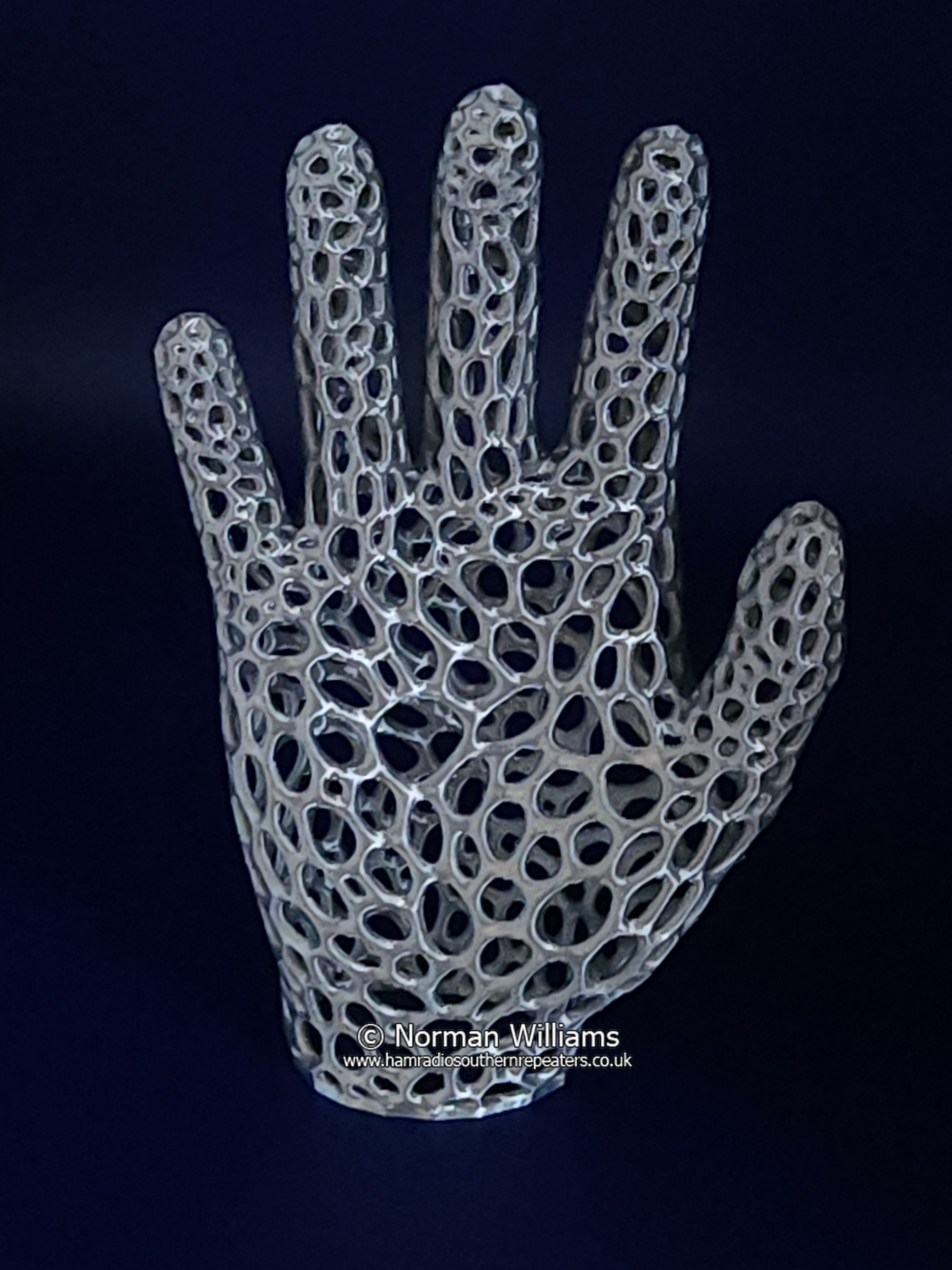

Photo 4, 5 & 6 = Left Hand - Creality settings, Faster print time. Took 9Hrs @ 0.2 layer height and Line width 0.45.

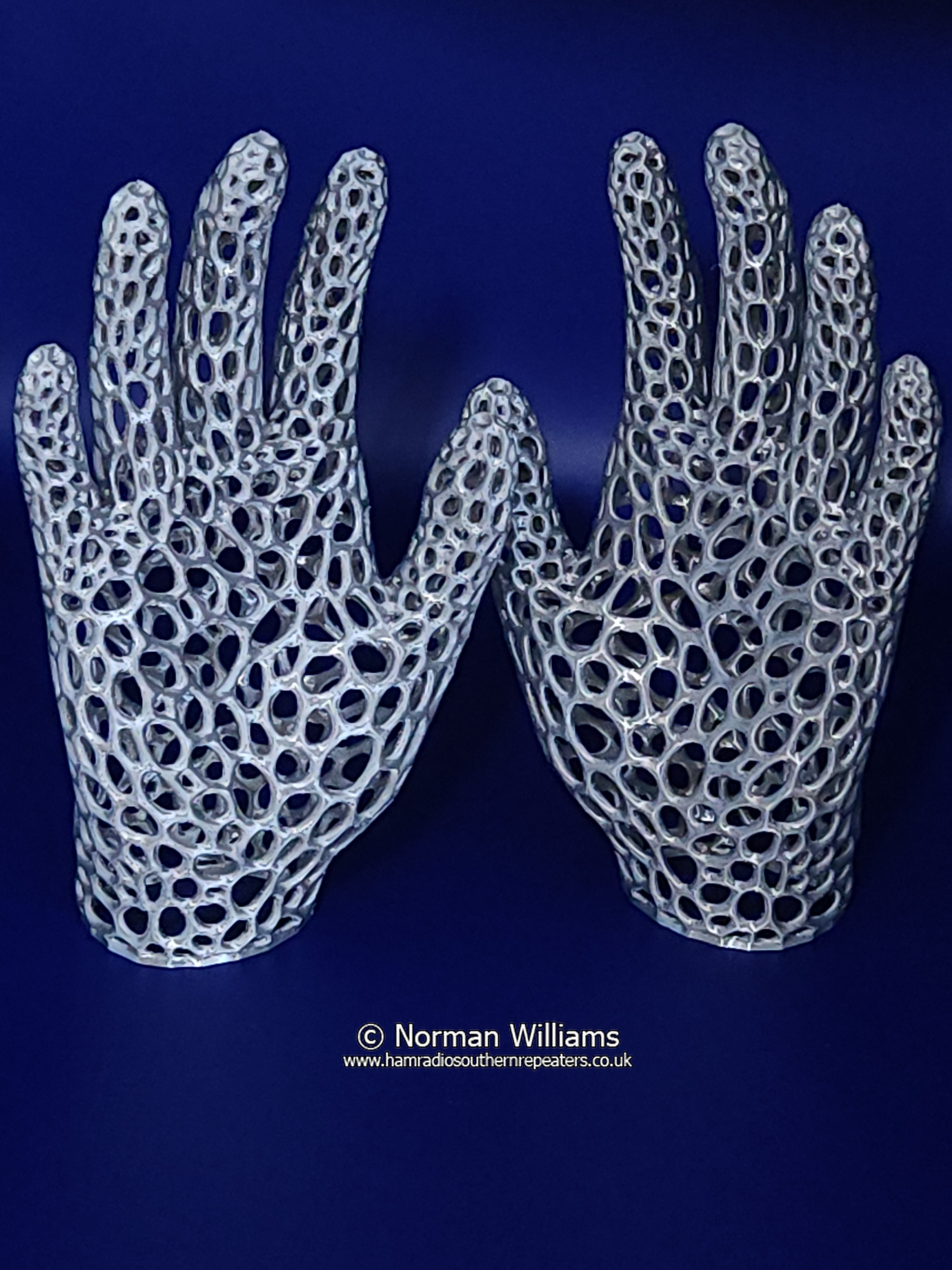

Photo 7 = Both hands together

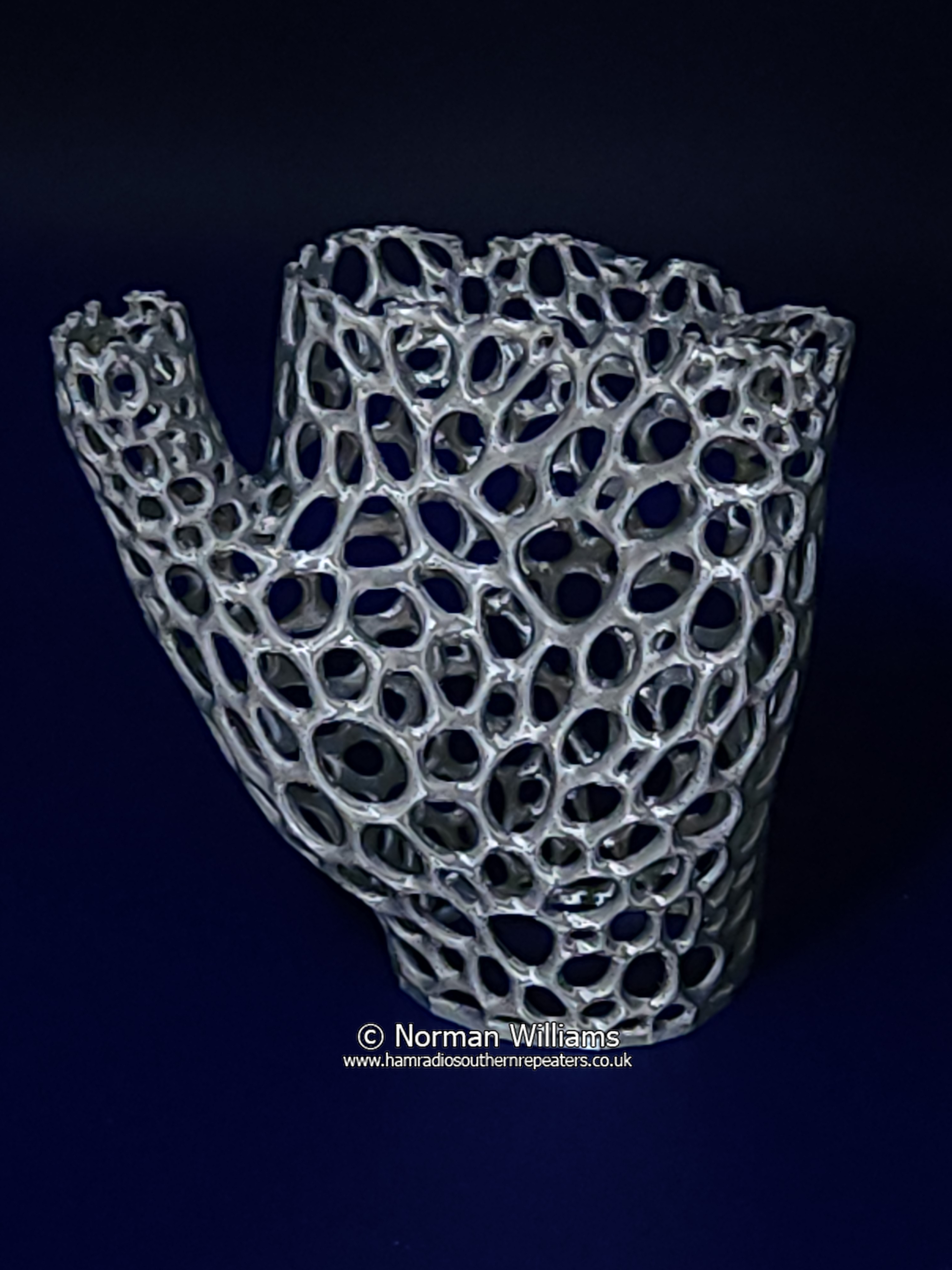

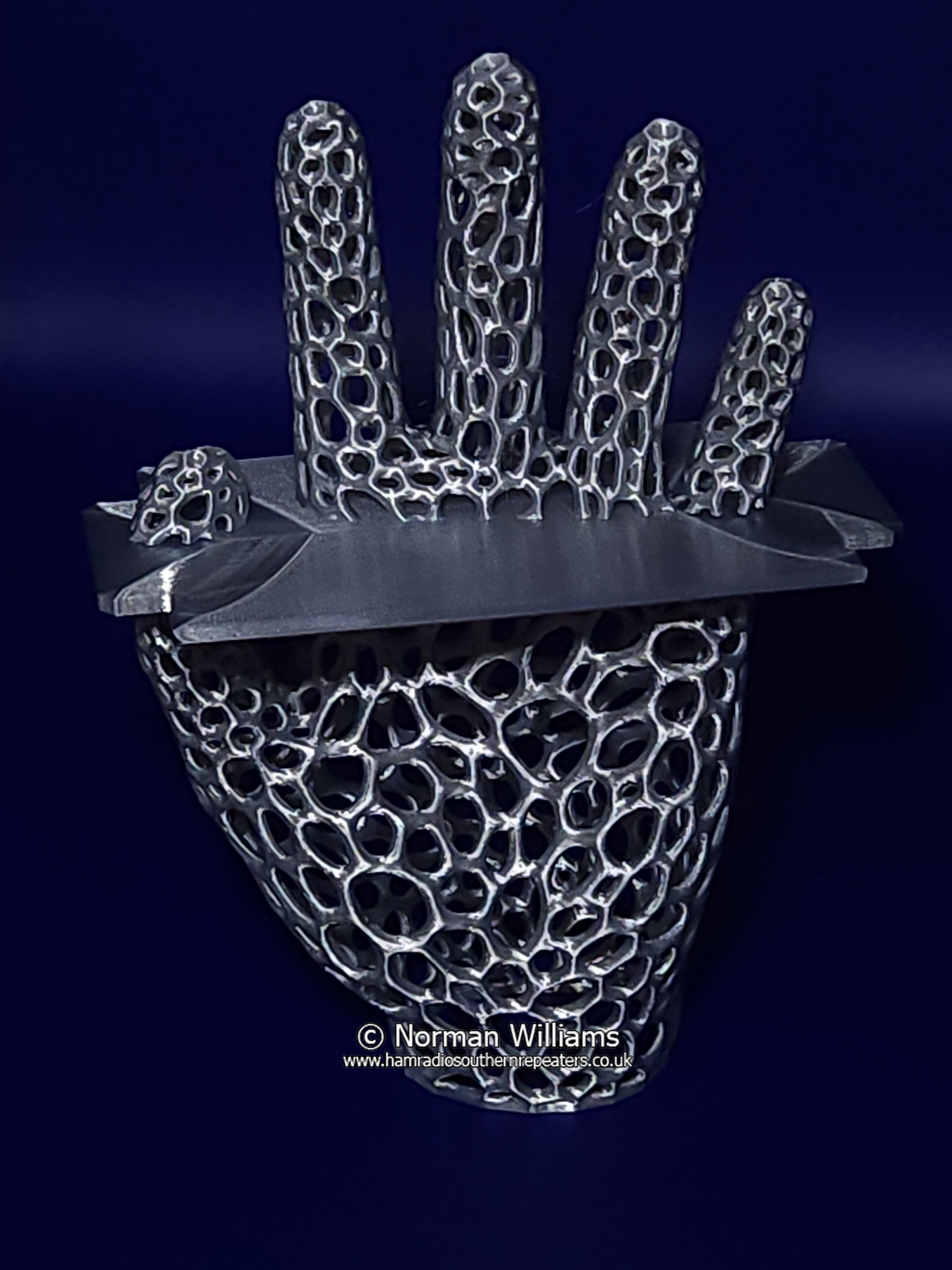

Photo 8 & 9 = What to do with a failed 5Hr print, bin it or modify. I went with modify. I added a modified blade and missing top of the hand.

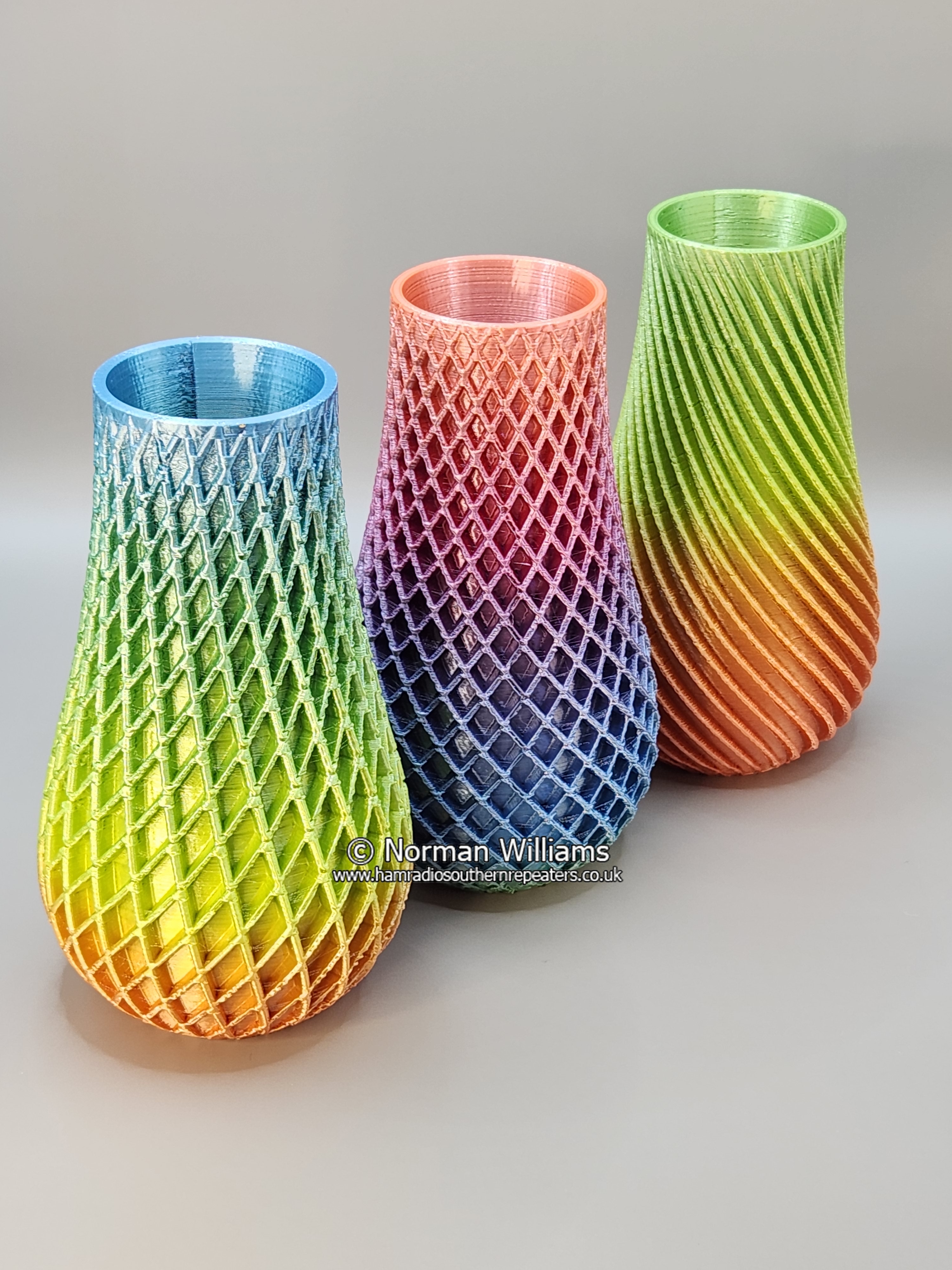

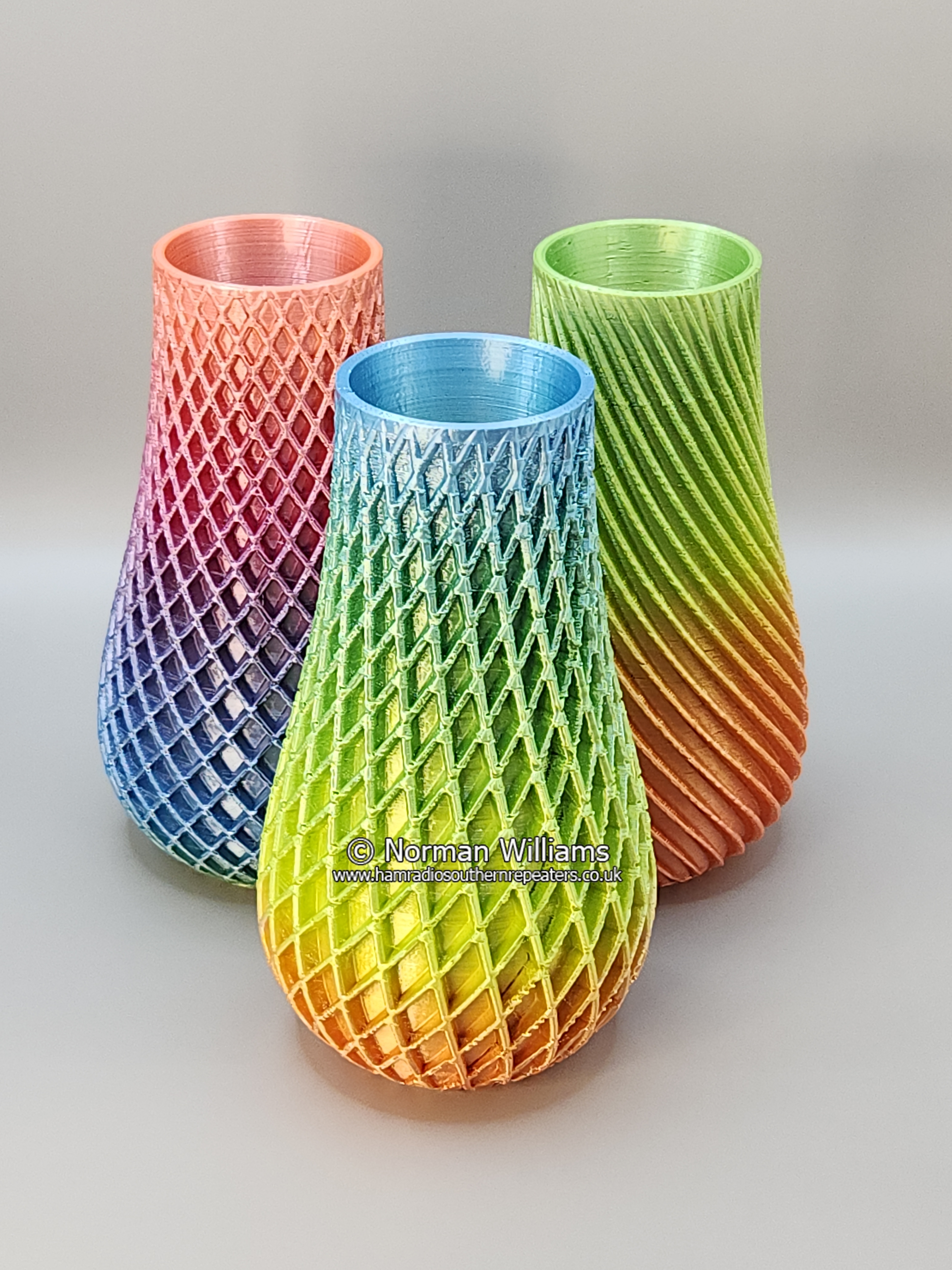

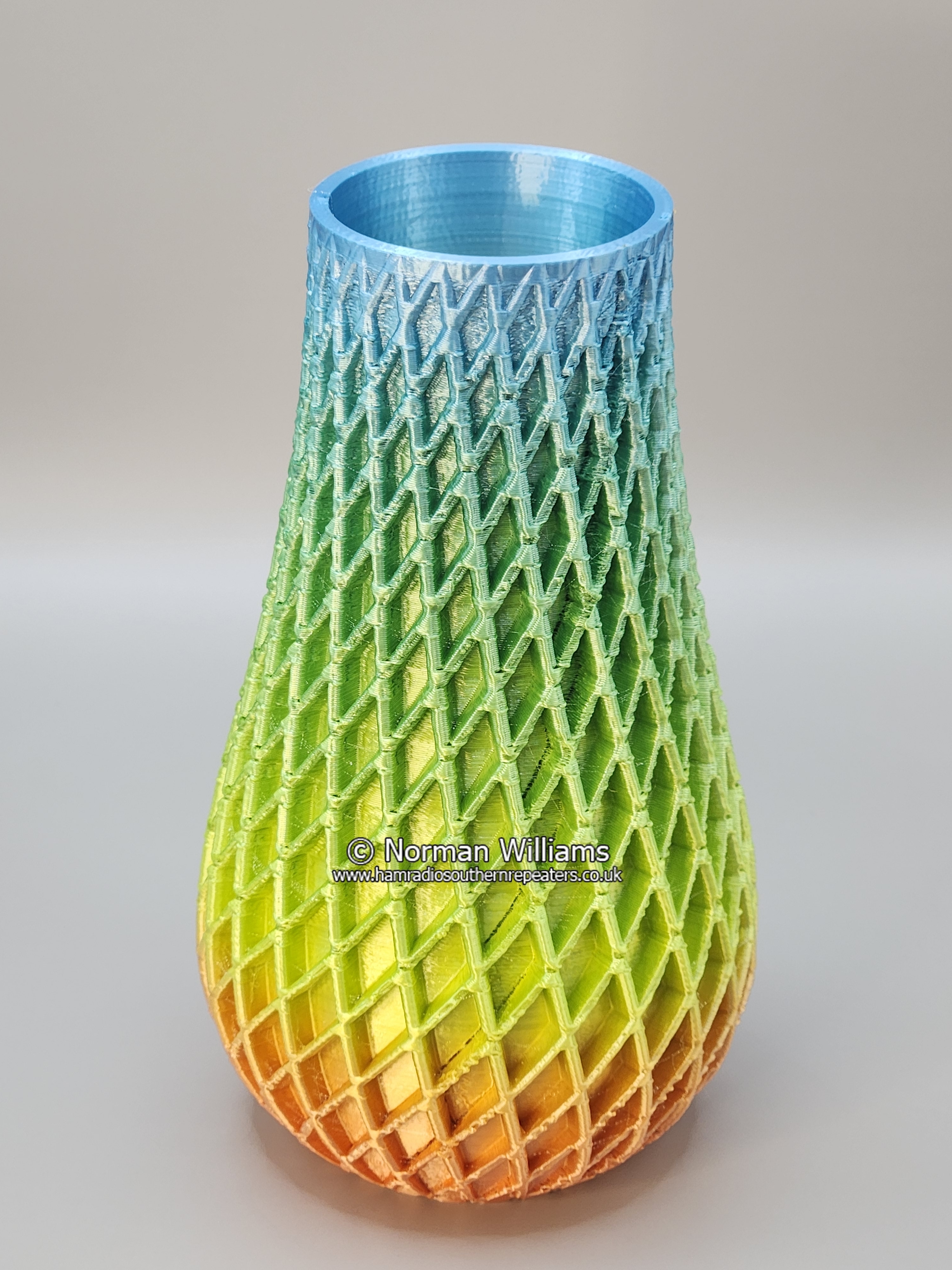

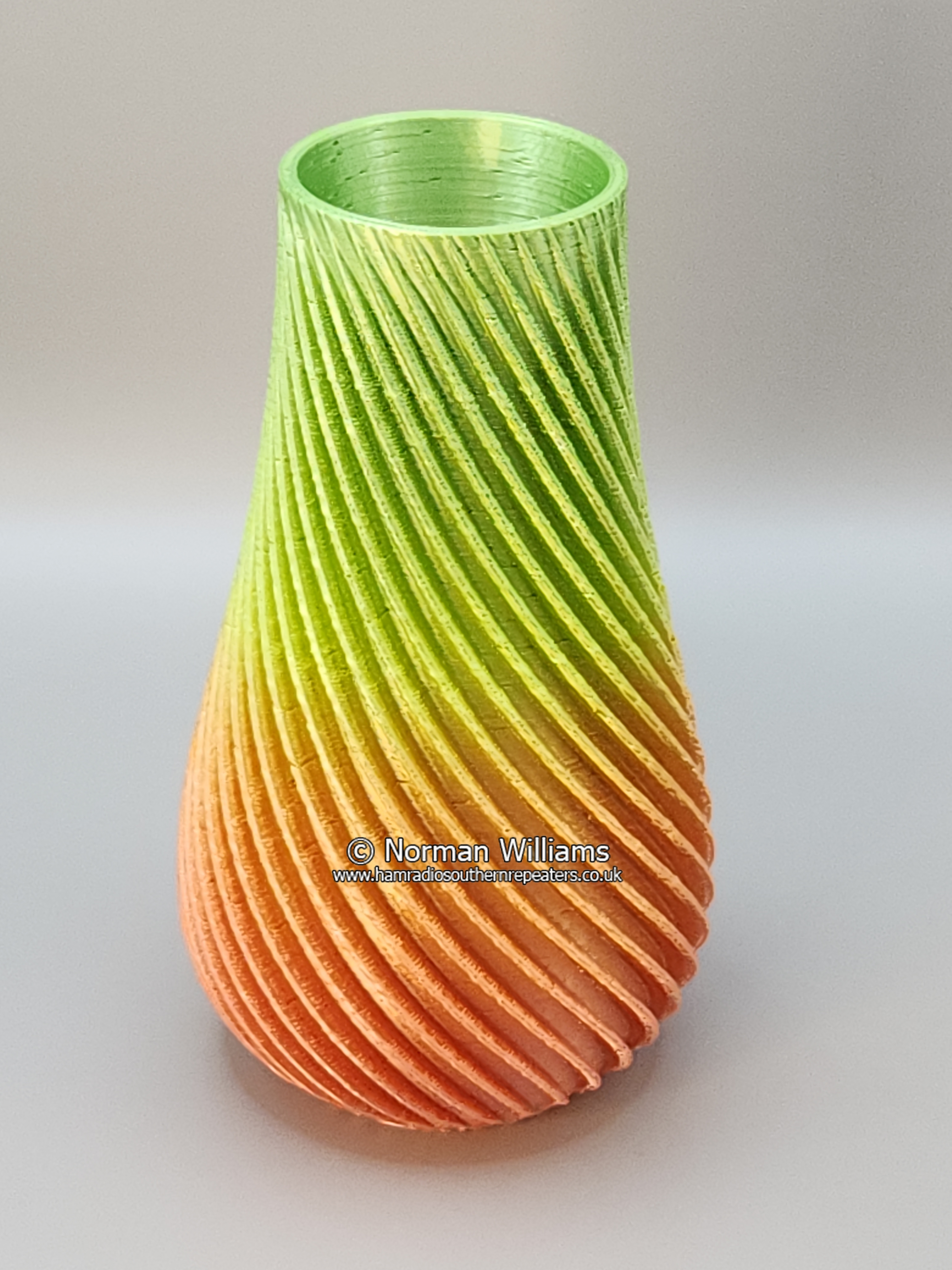

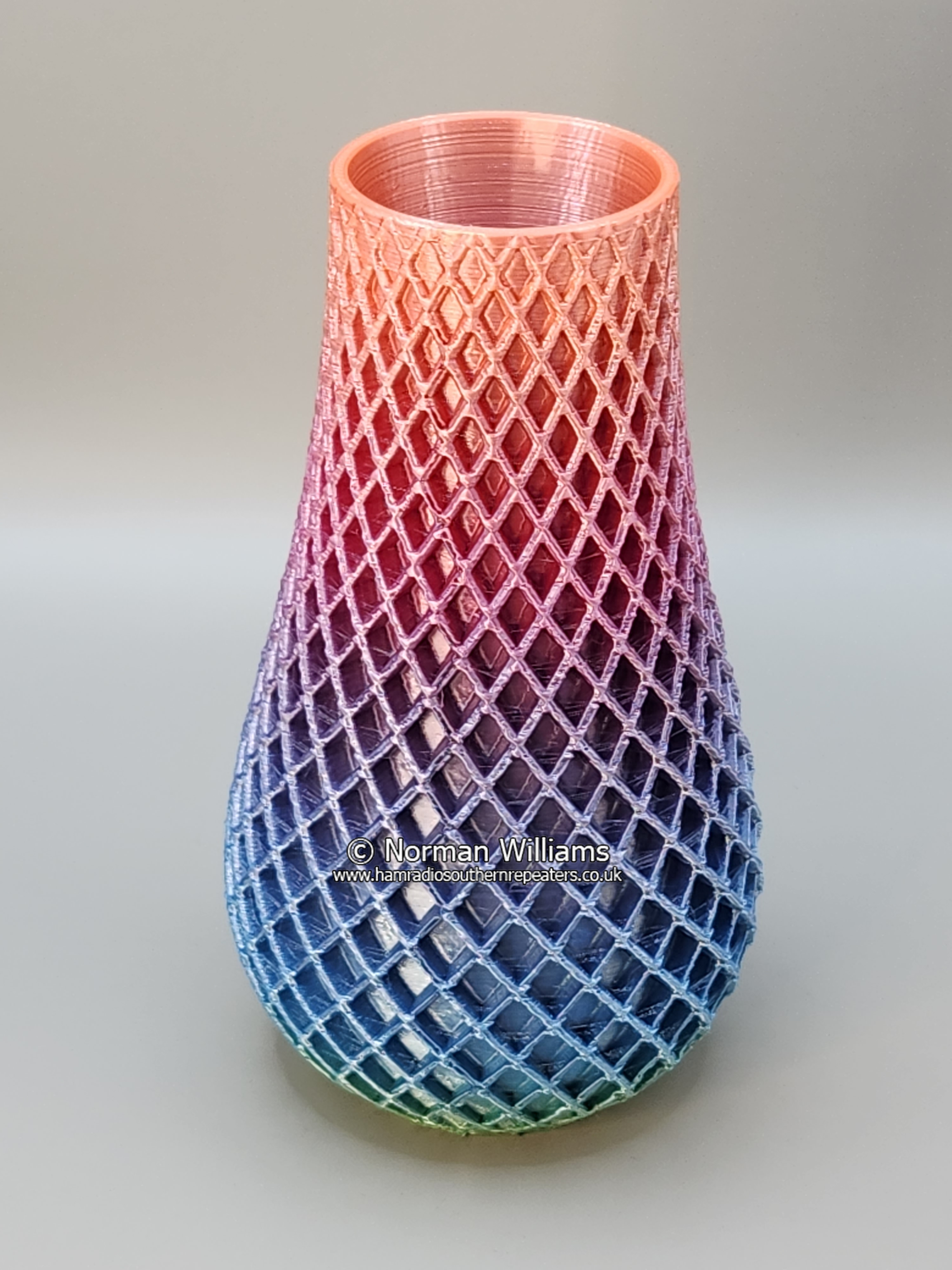

Spiral Vase 0.2 layer height and Line width 0.45.

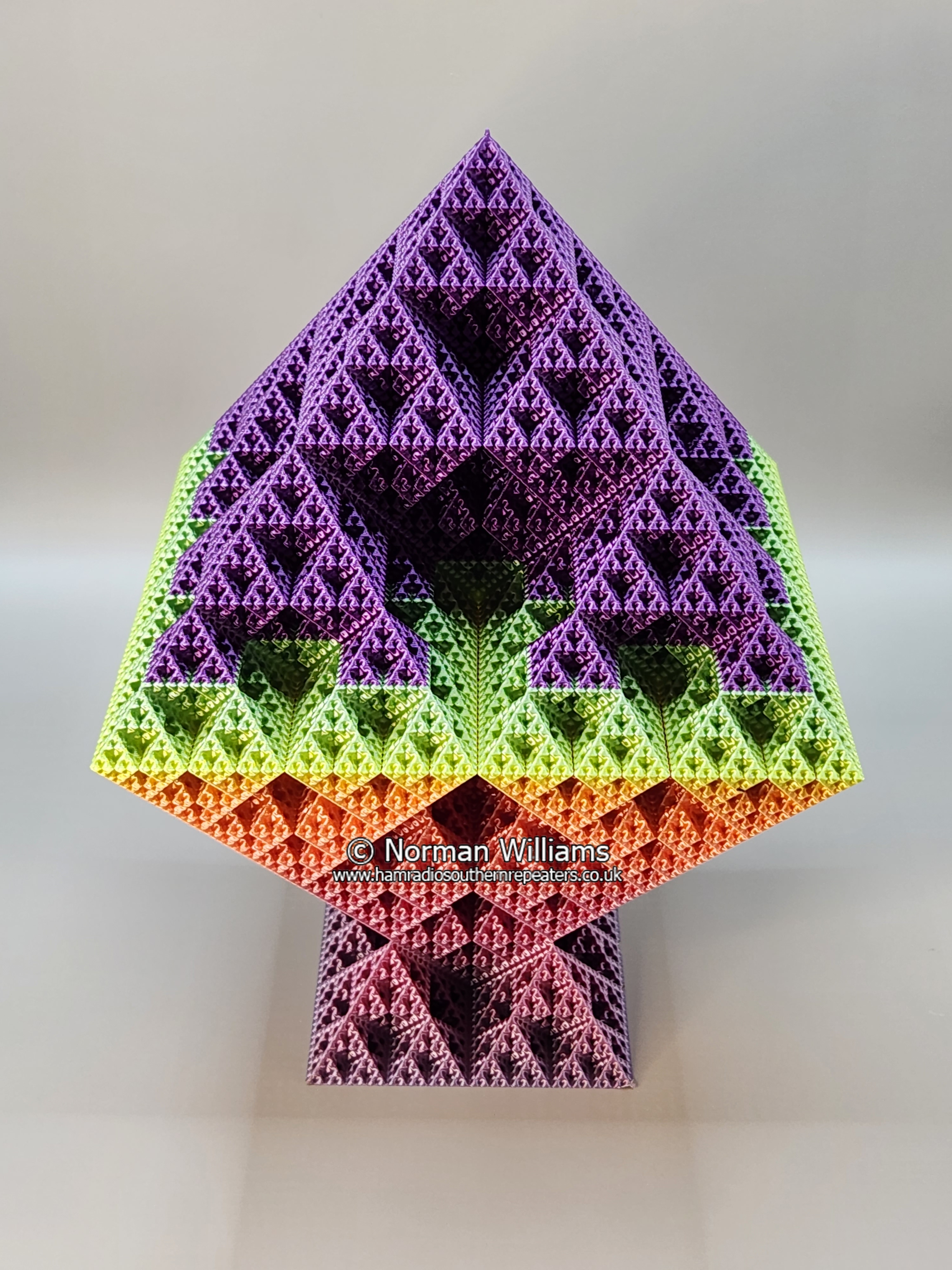

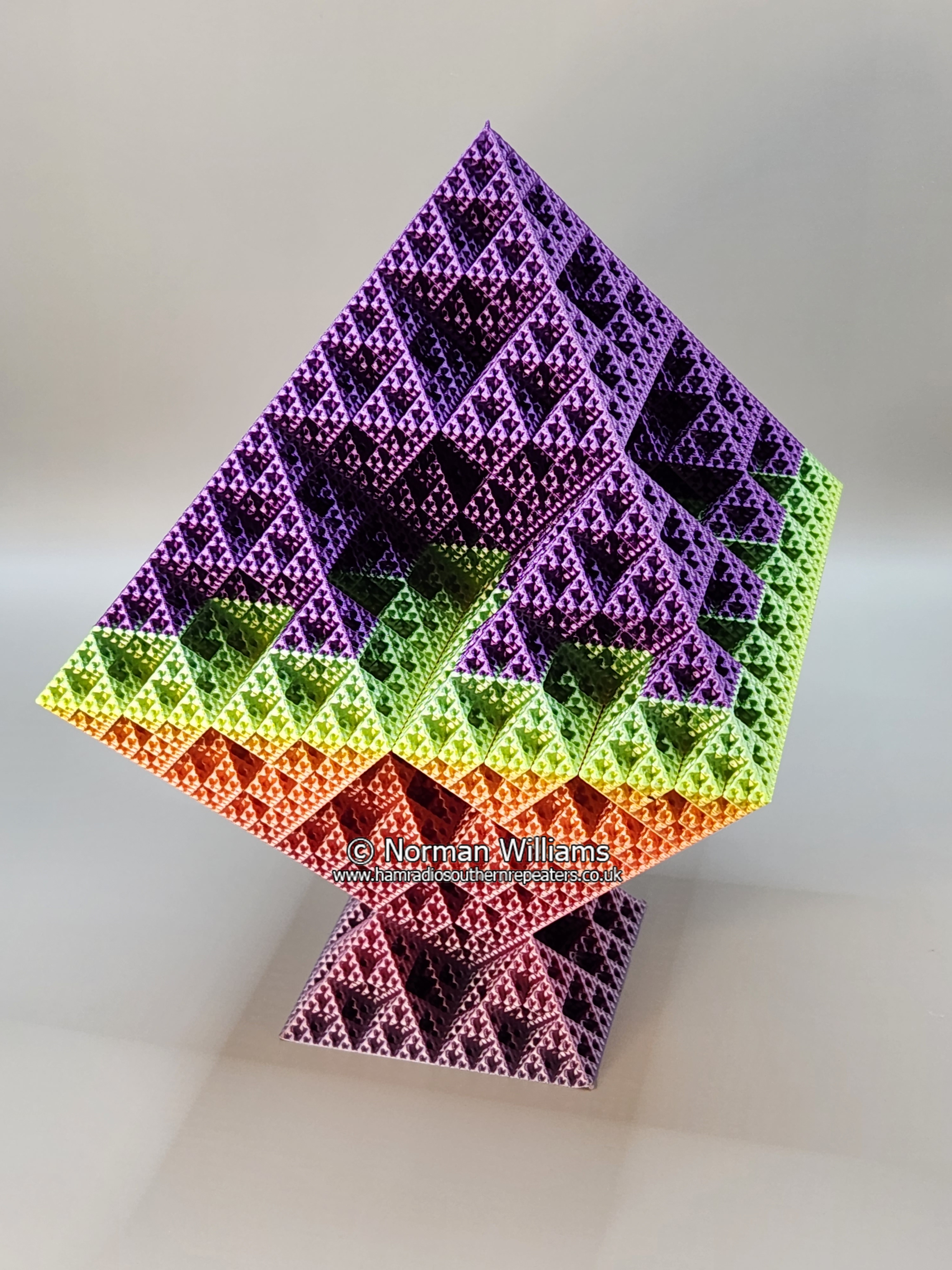

Octahedroflake 27hrs each at 200mm/s. 0.2 layer height and Line width, 0.45.

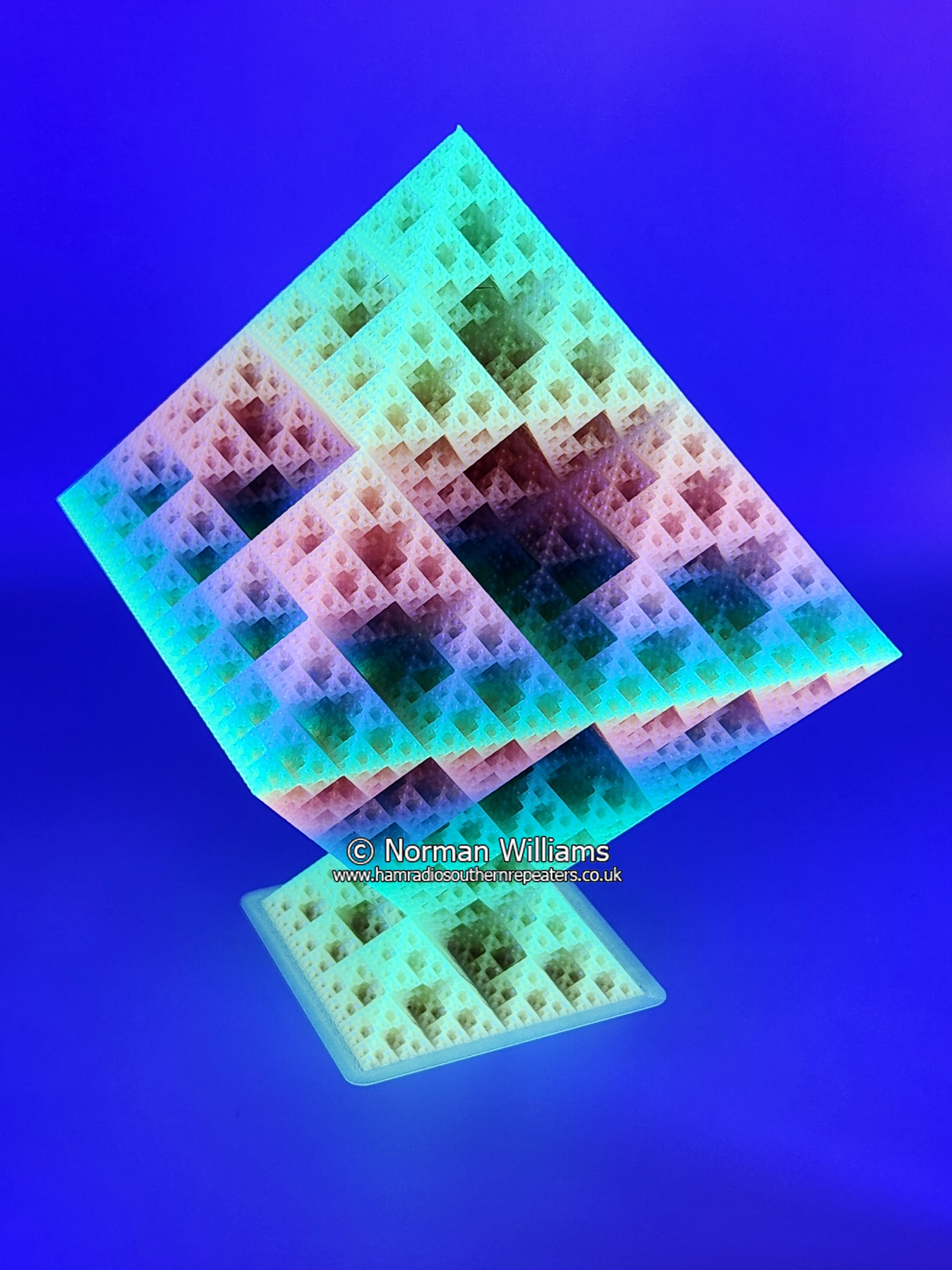

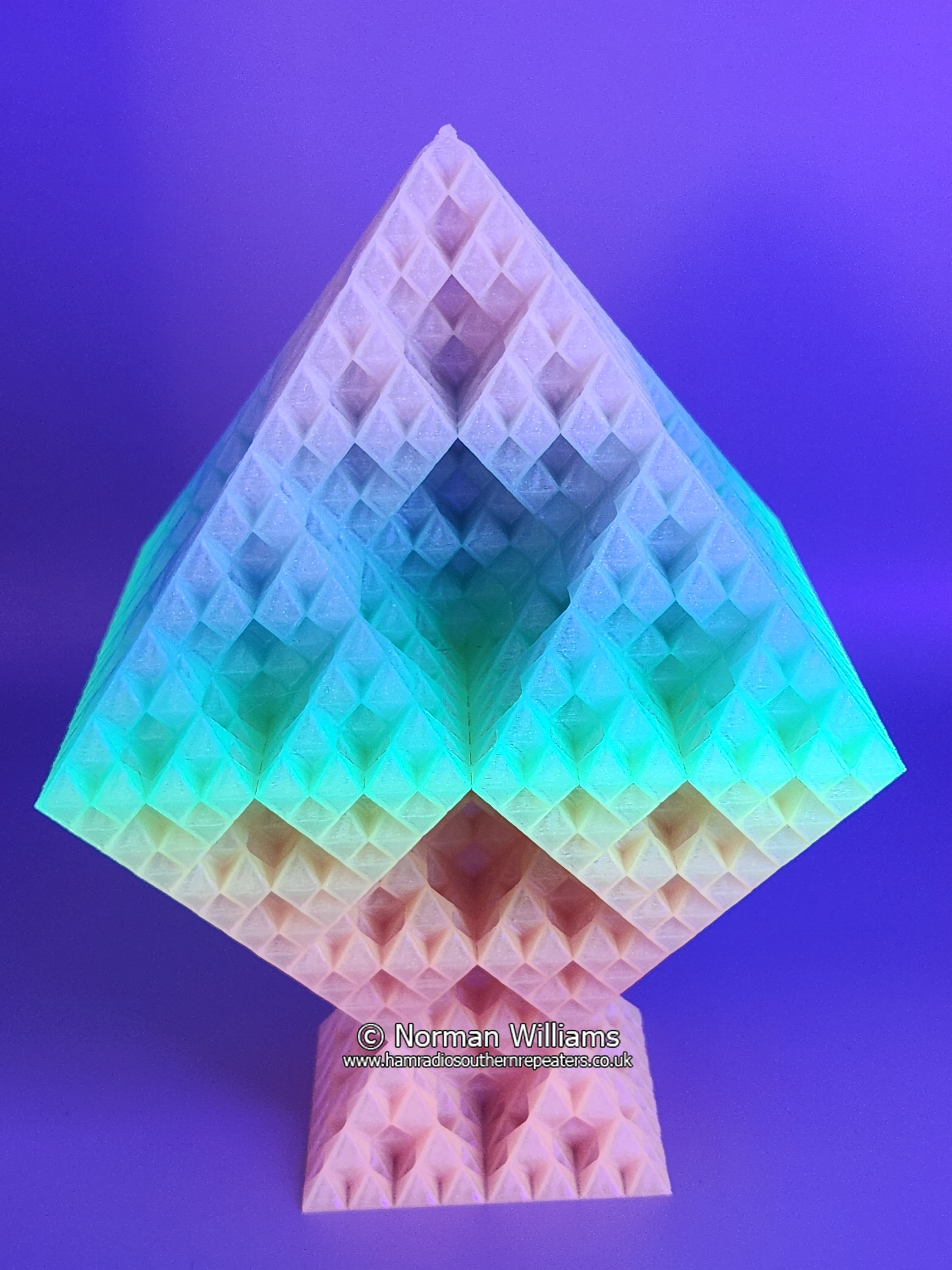

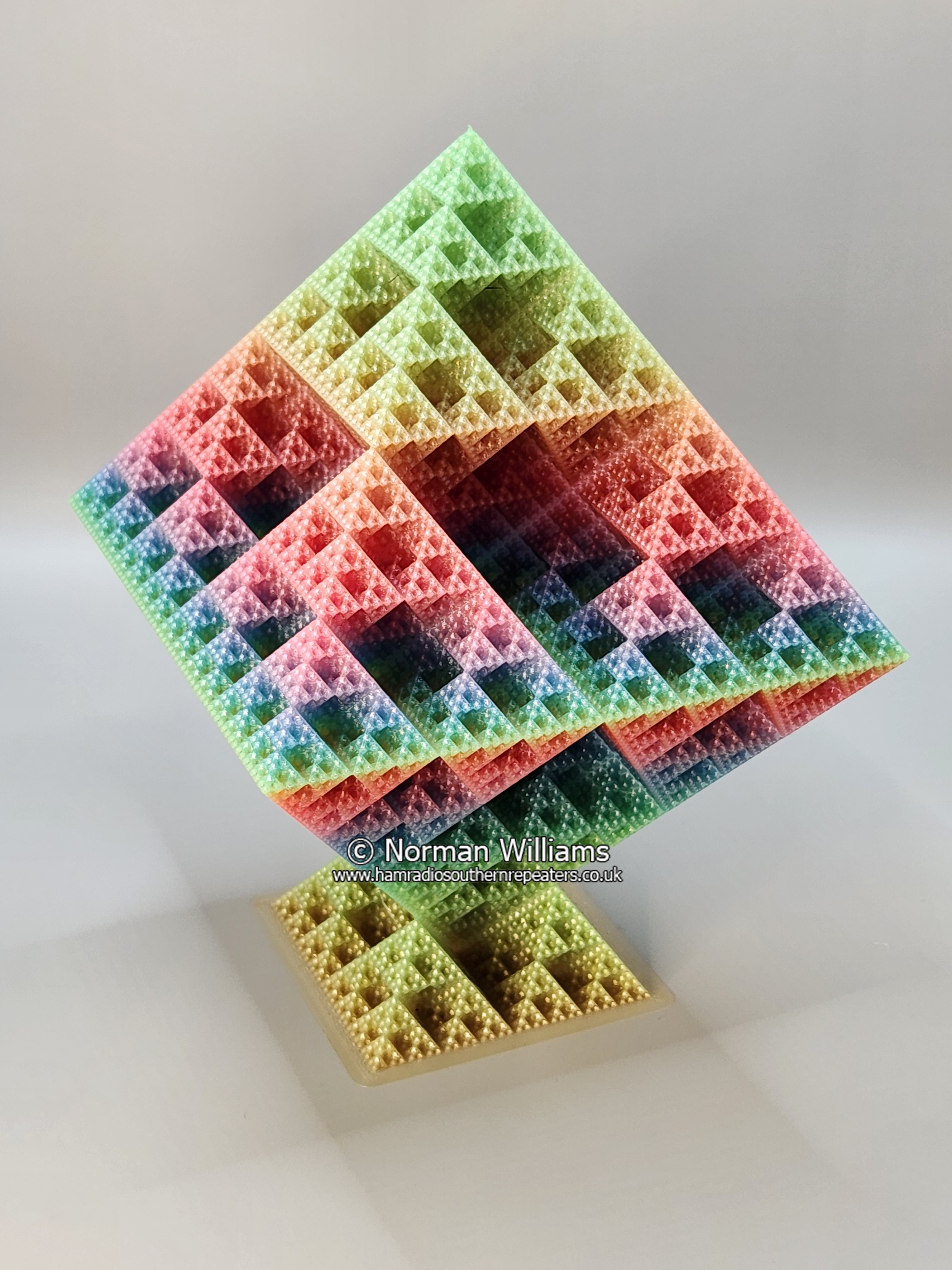

UV Glow Version.   Photos 1 & 2.  0.2 layer height and Line width, 0.45.

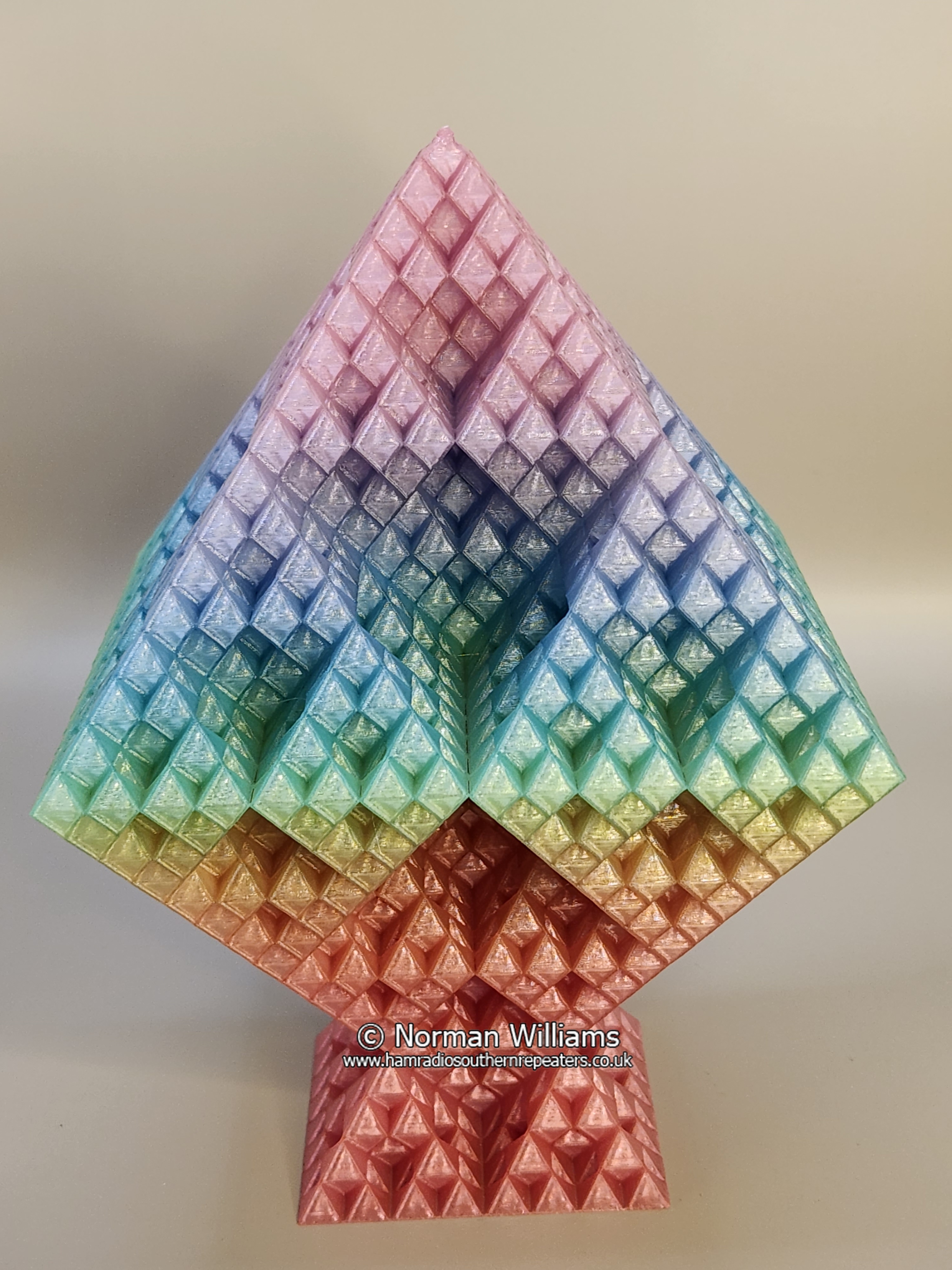

Photos 3 & 4 is Octahedroflake Chunky Edition at around 6hrs at 310mm/s. I used the UV Rainbow filament

Dali like melting clock face plate

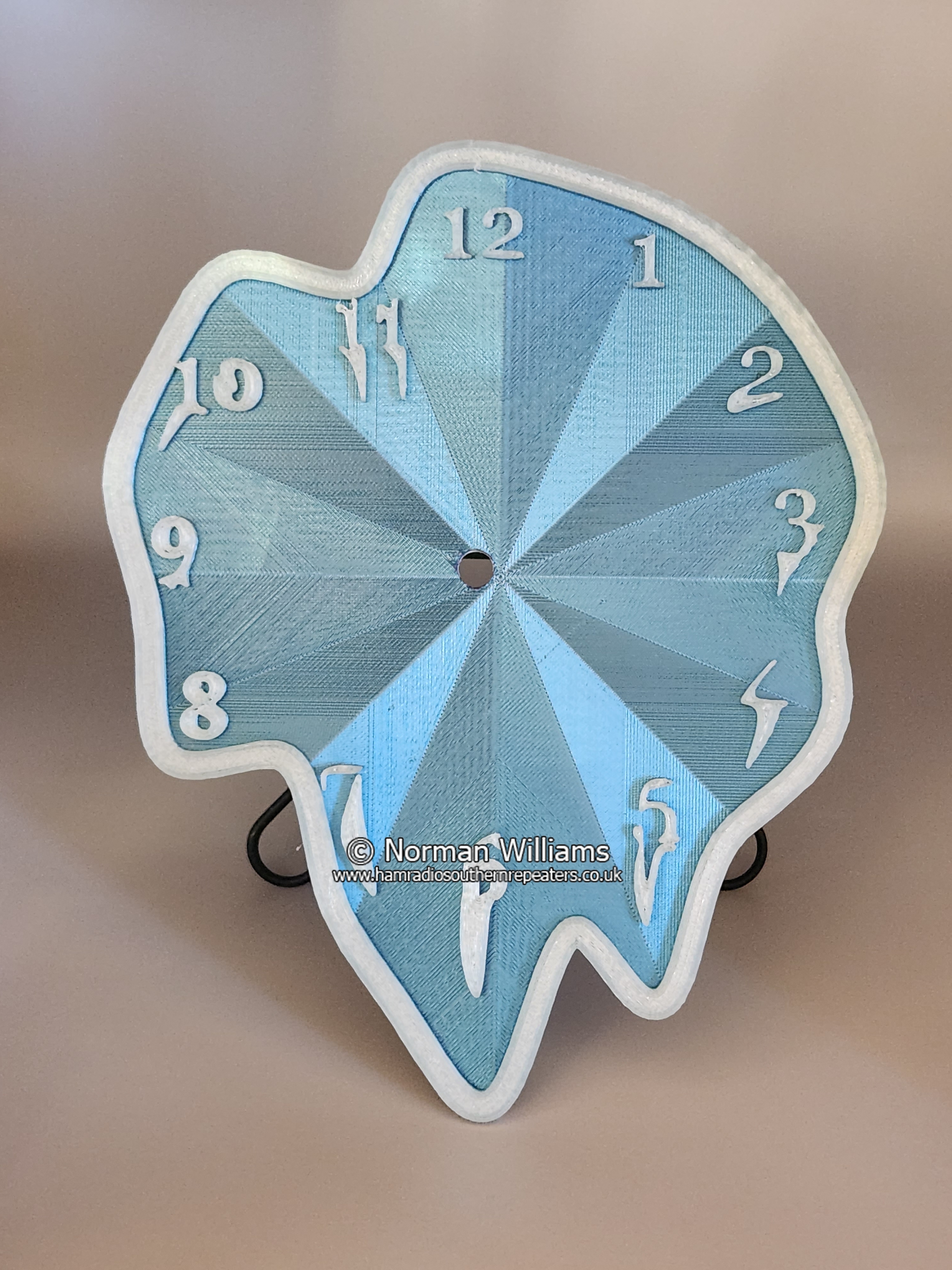

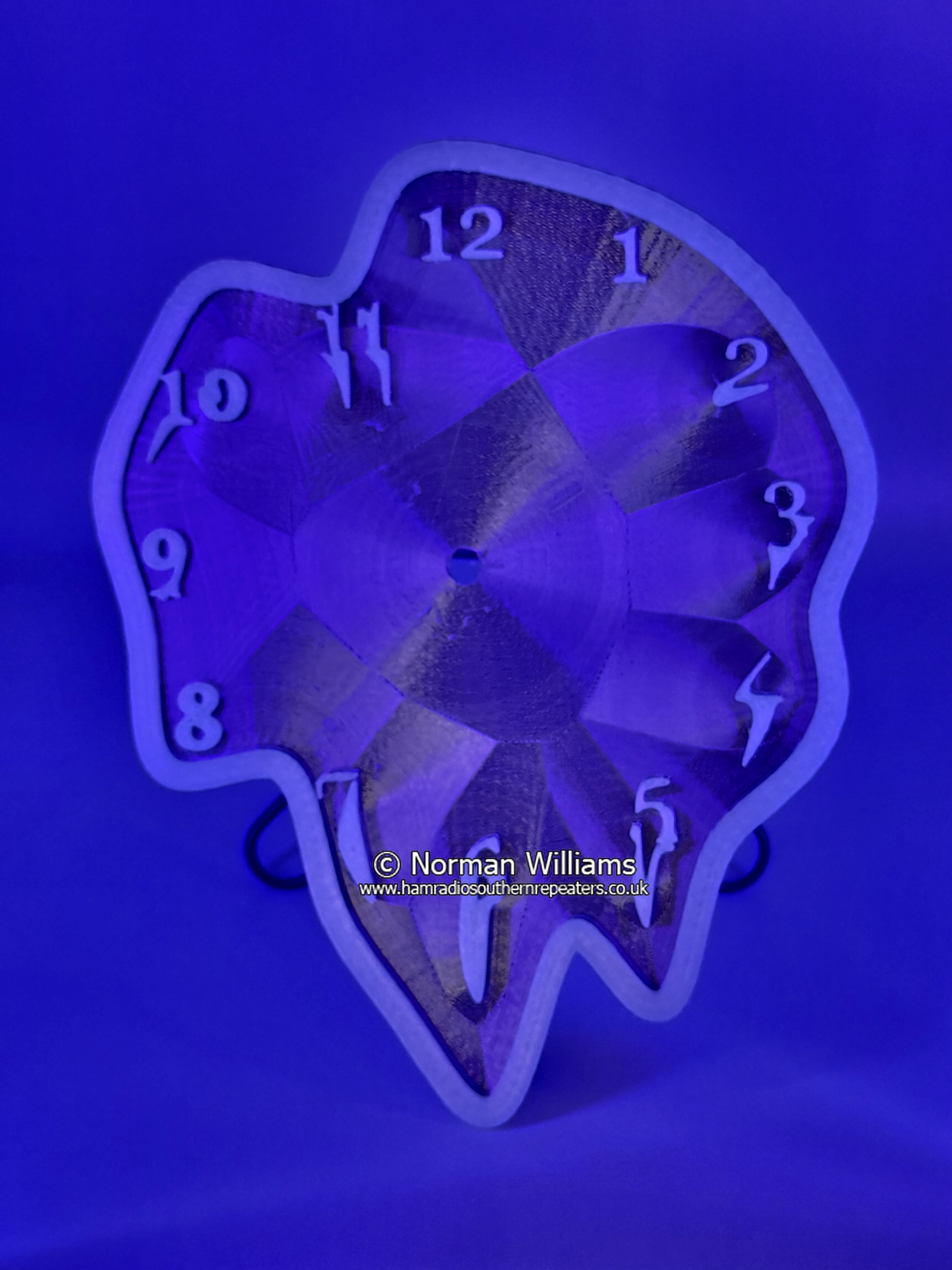

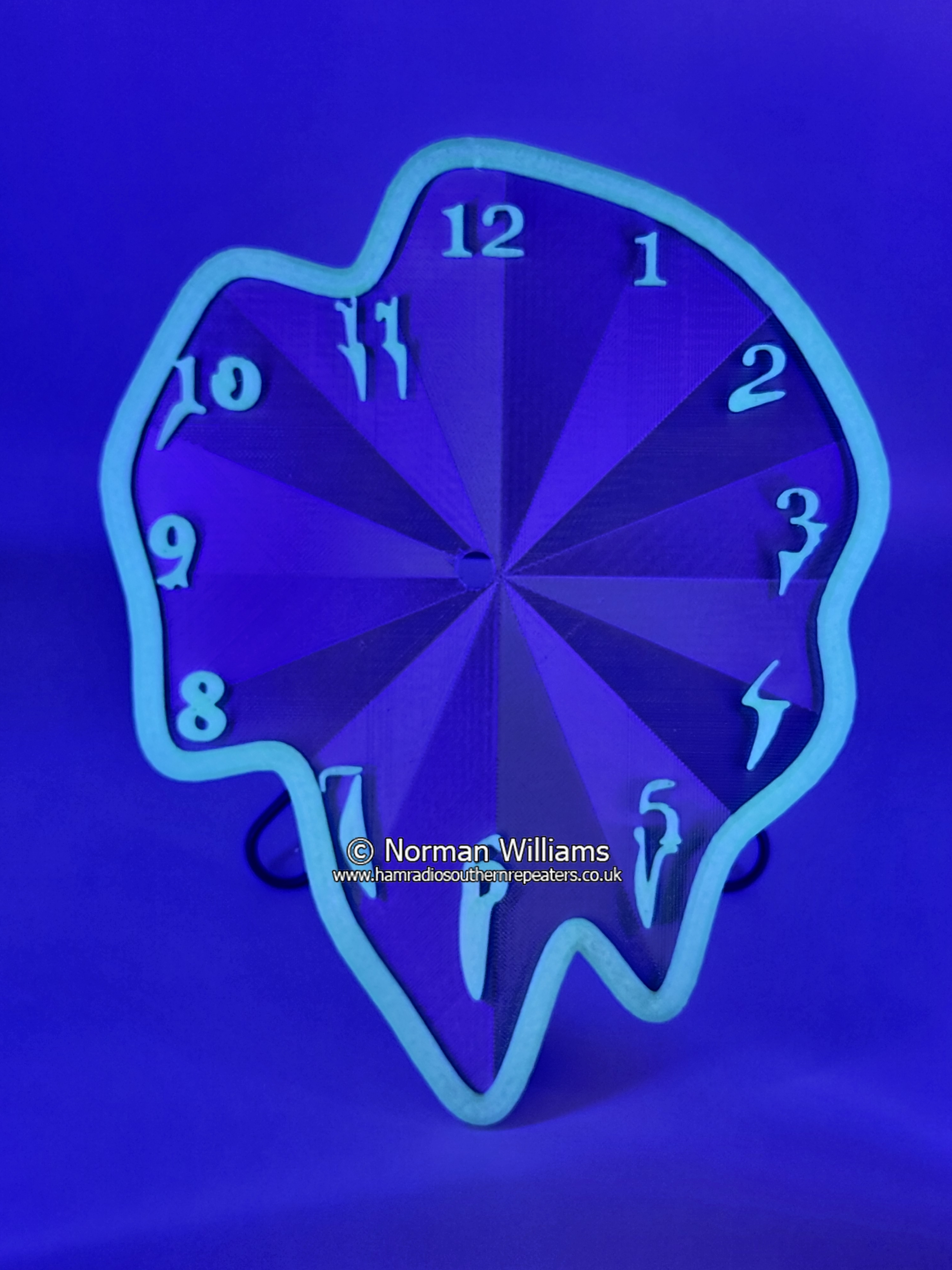

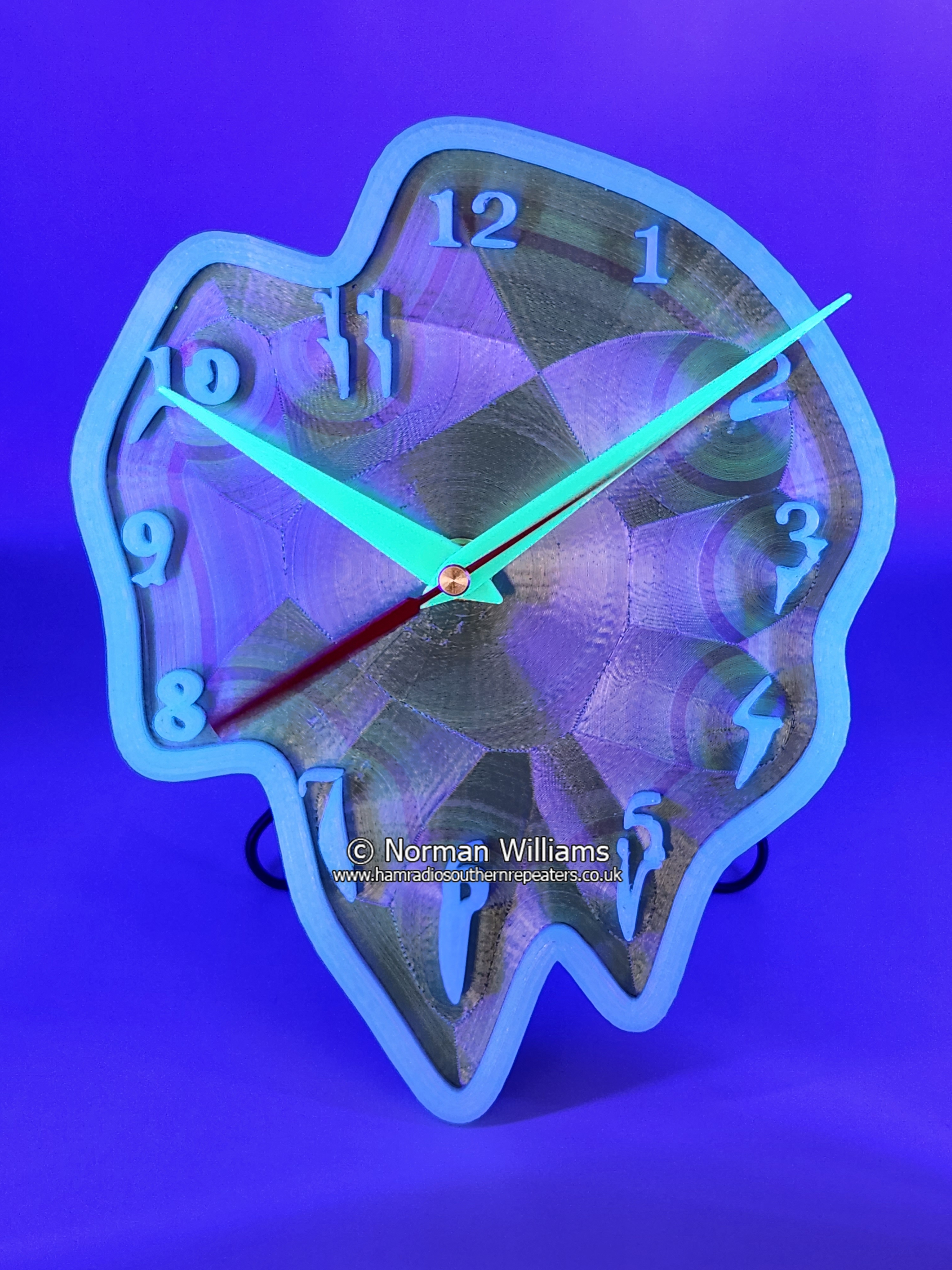

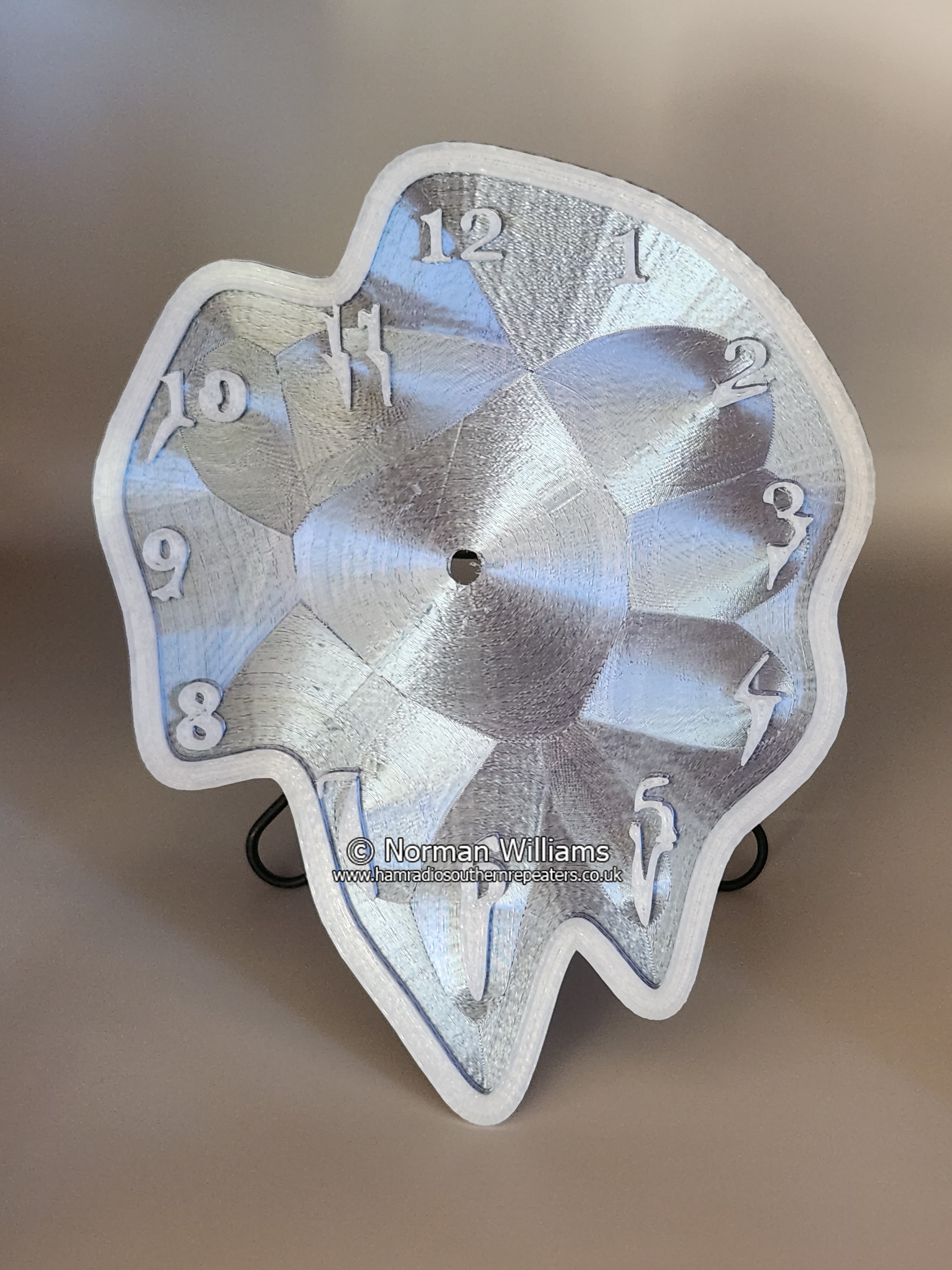

Photo 1 to 6 = With UV Glow parts and different Top surface pattern. 0.2 layer height and Line width, 0.45. Speed varied between 40 - 200mm/s. Print time around 4Hrs.

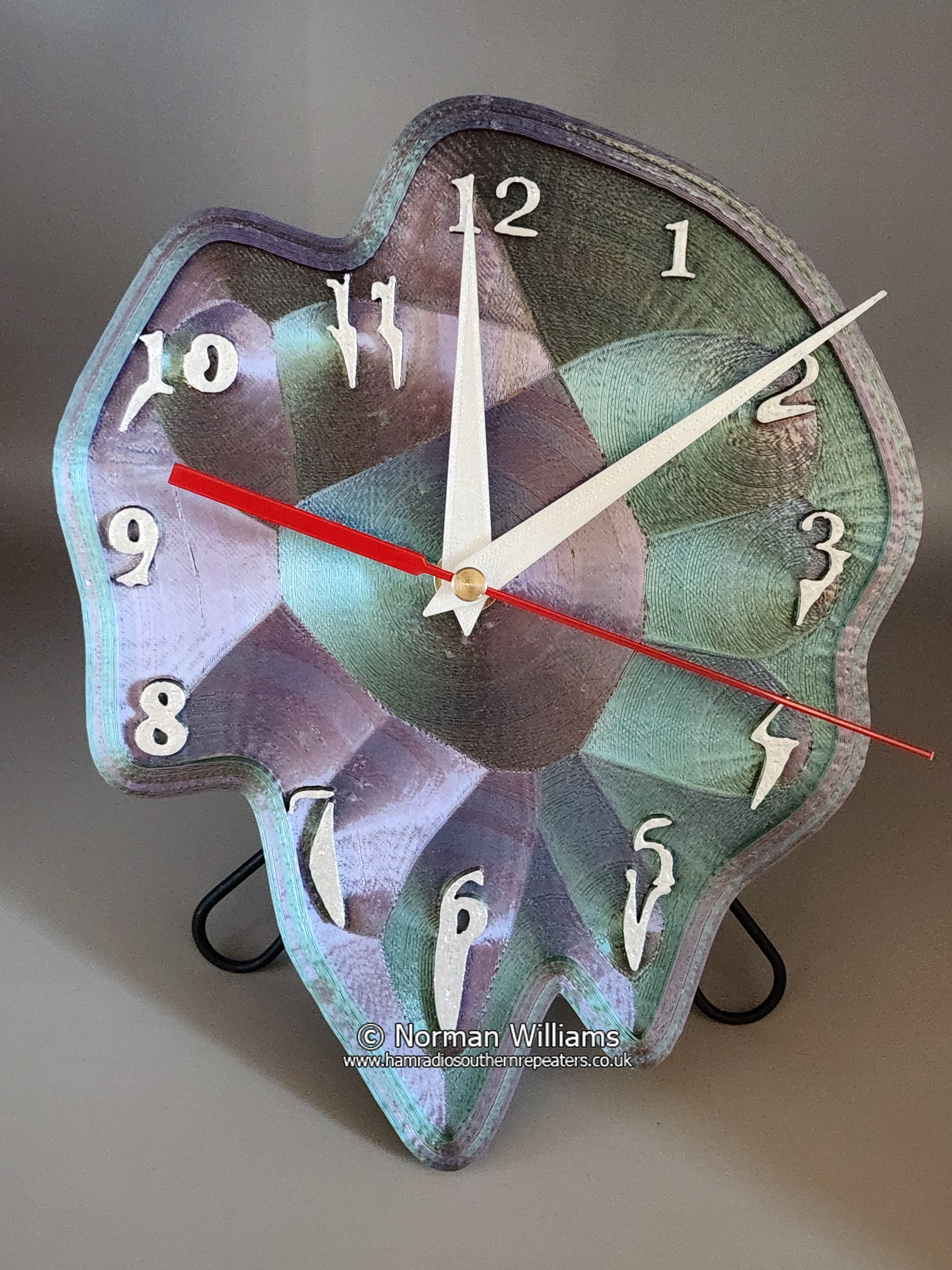

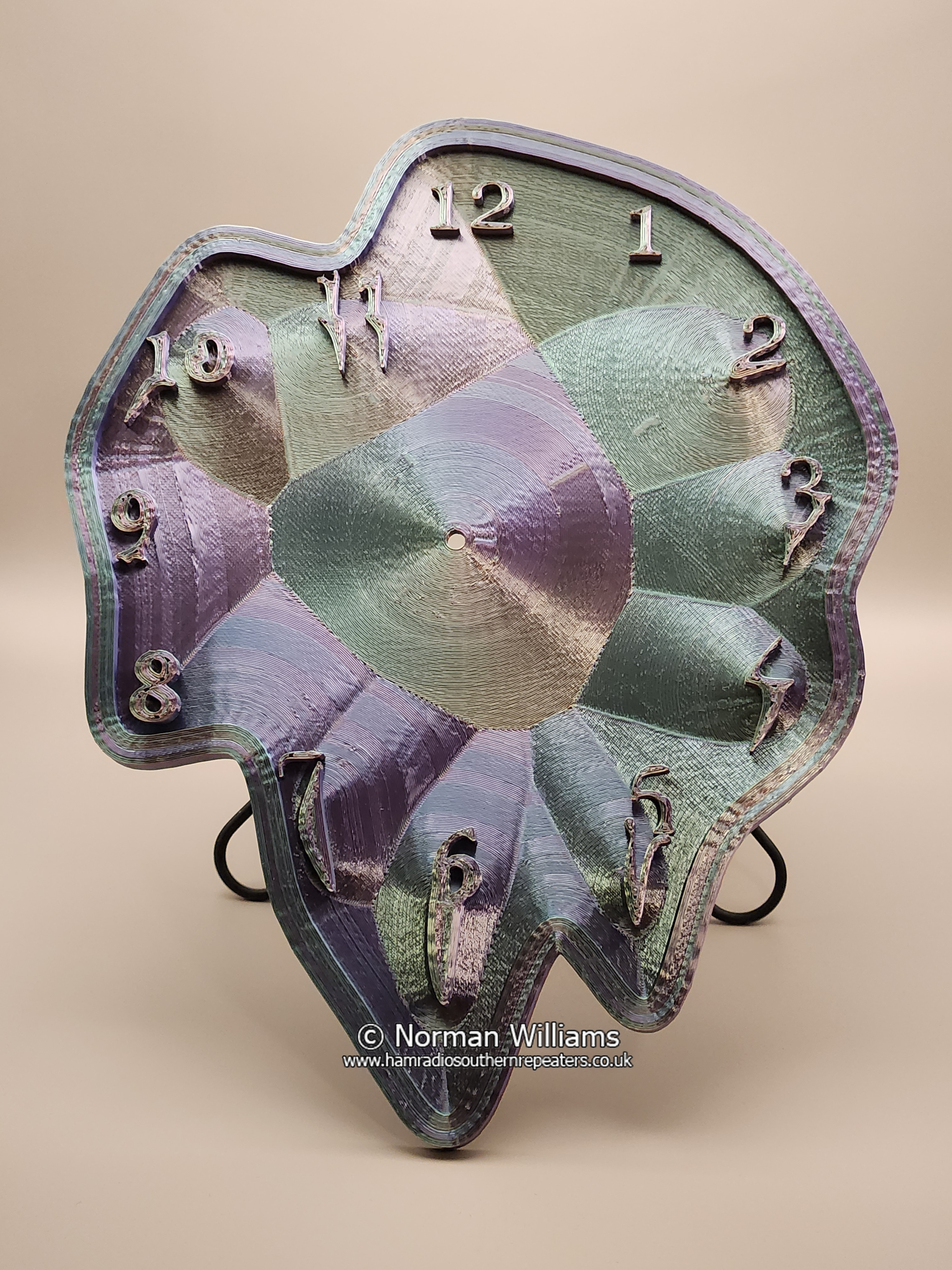

Photo 7 & 8 = Printed in eSUN Silk Tri-Colors PLA, Bronze, Purple and Green. 0.2 layer height and Line width, 0.45. Speed 100mm/s after 1st two layers at 70mm/s. Print time 2Hrs 45m.

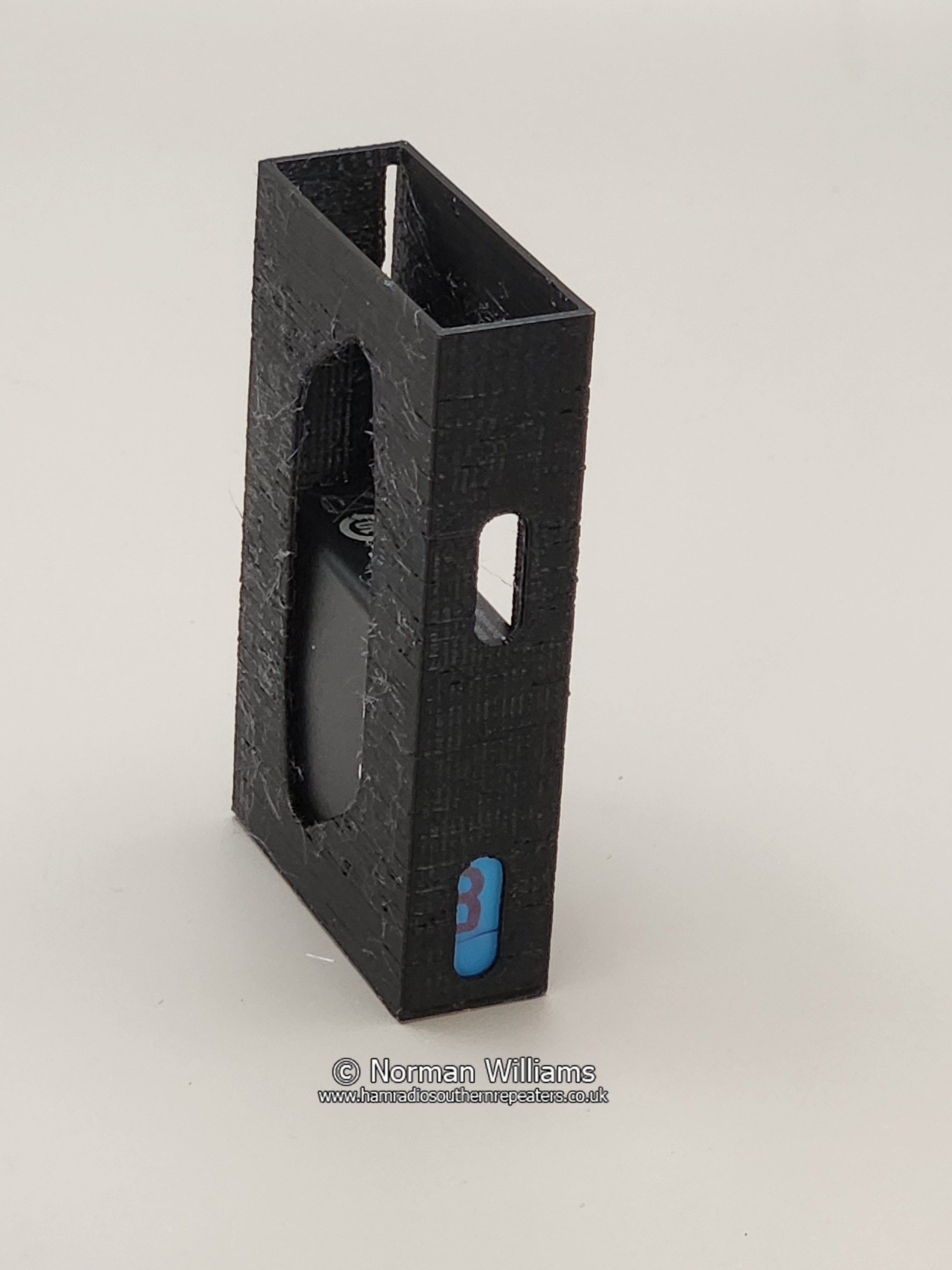

Odd jobs

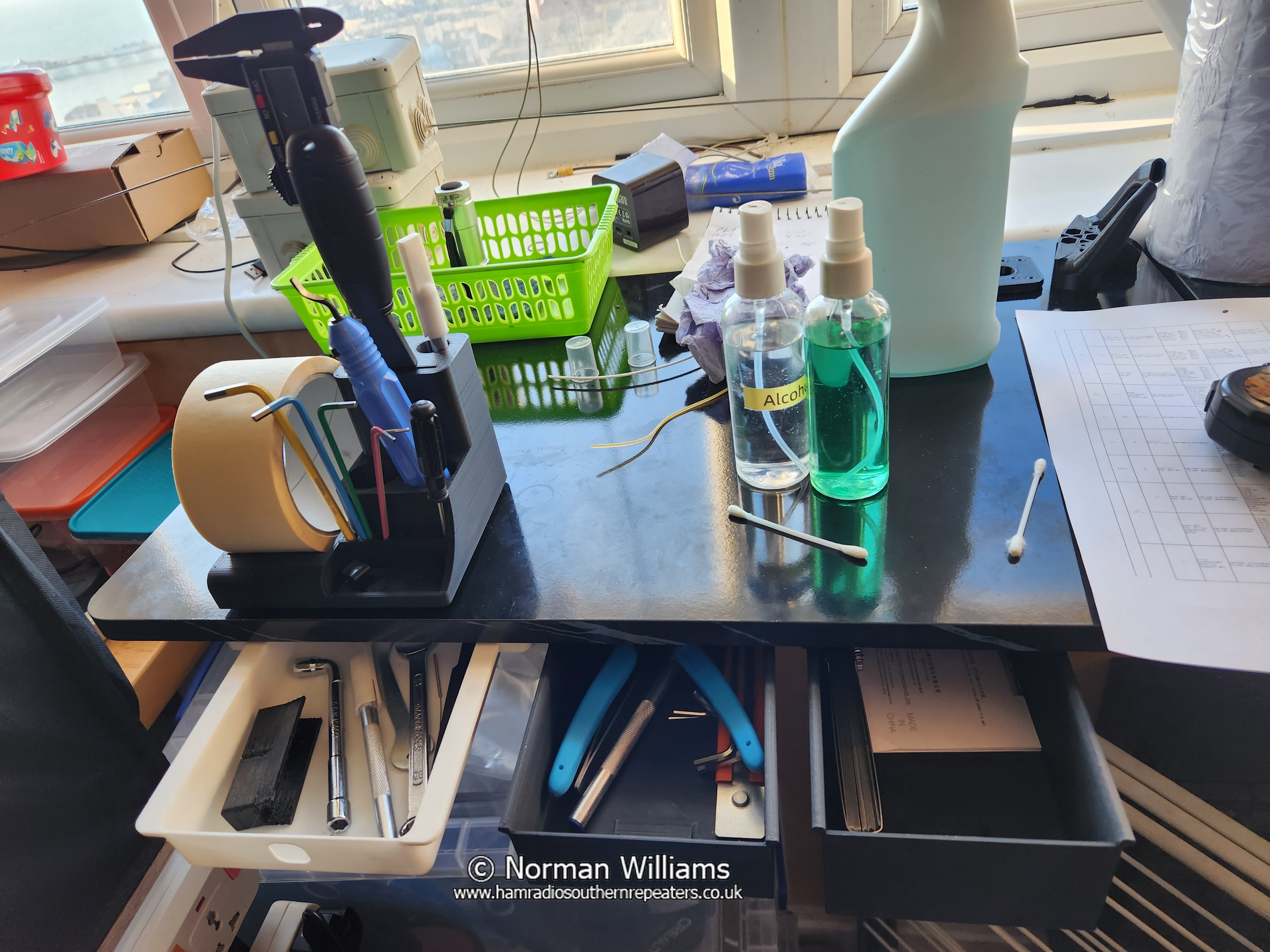

Photo 1 & 2 = White Under Table Drawers. Both resized
Photo 1 = Black Under table drawer easy print. Both resized
Photo 1 = Tool Holder

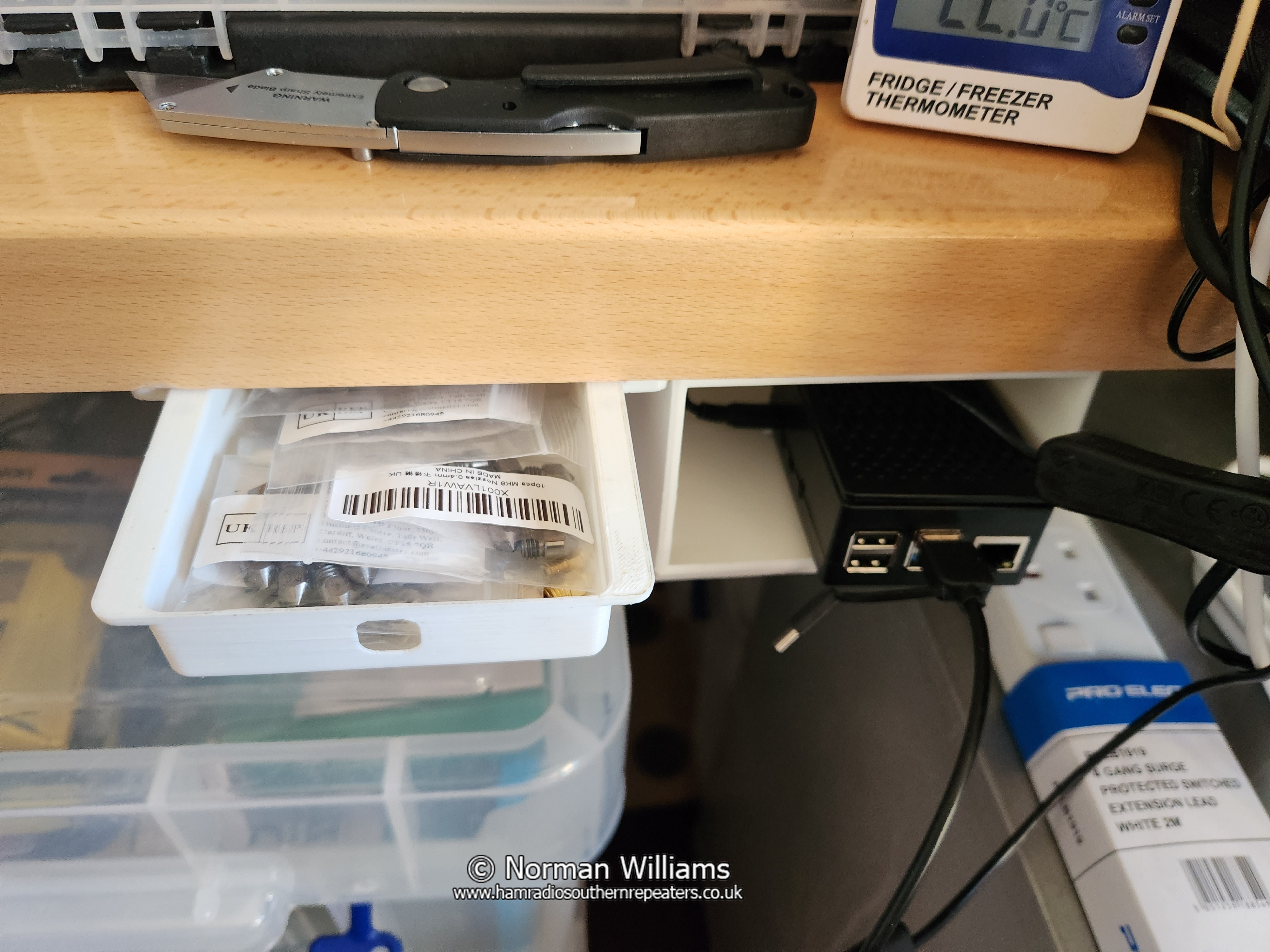

Photo 2 = Morse Key under table storage drawer. Resized to hold a Pi4 and fit under table

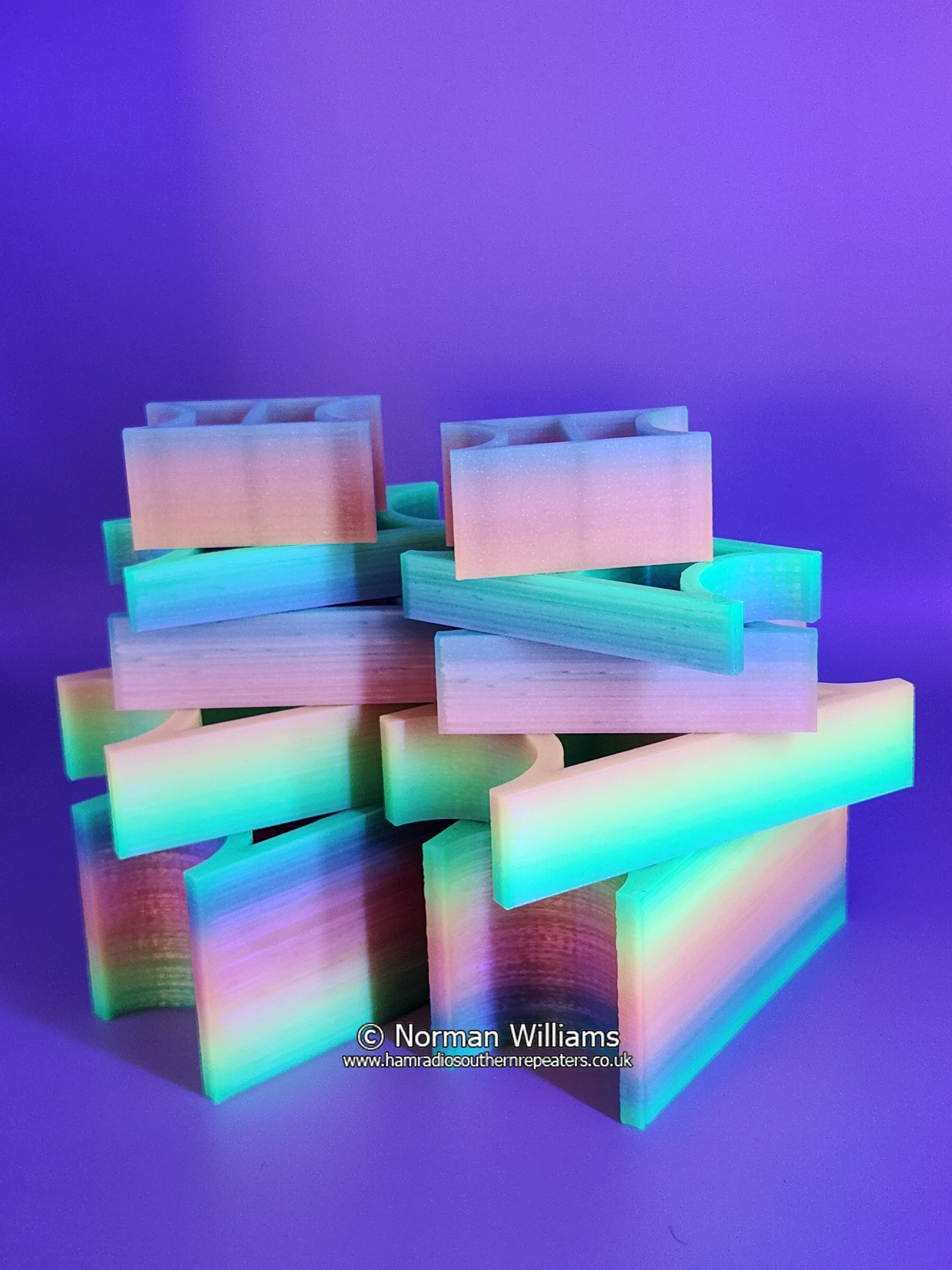

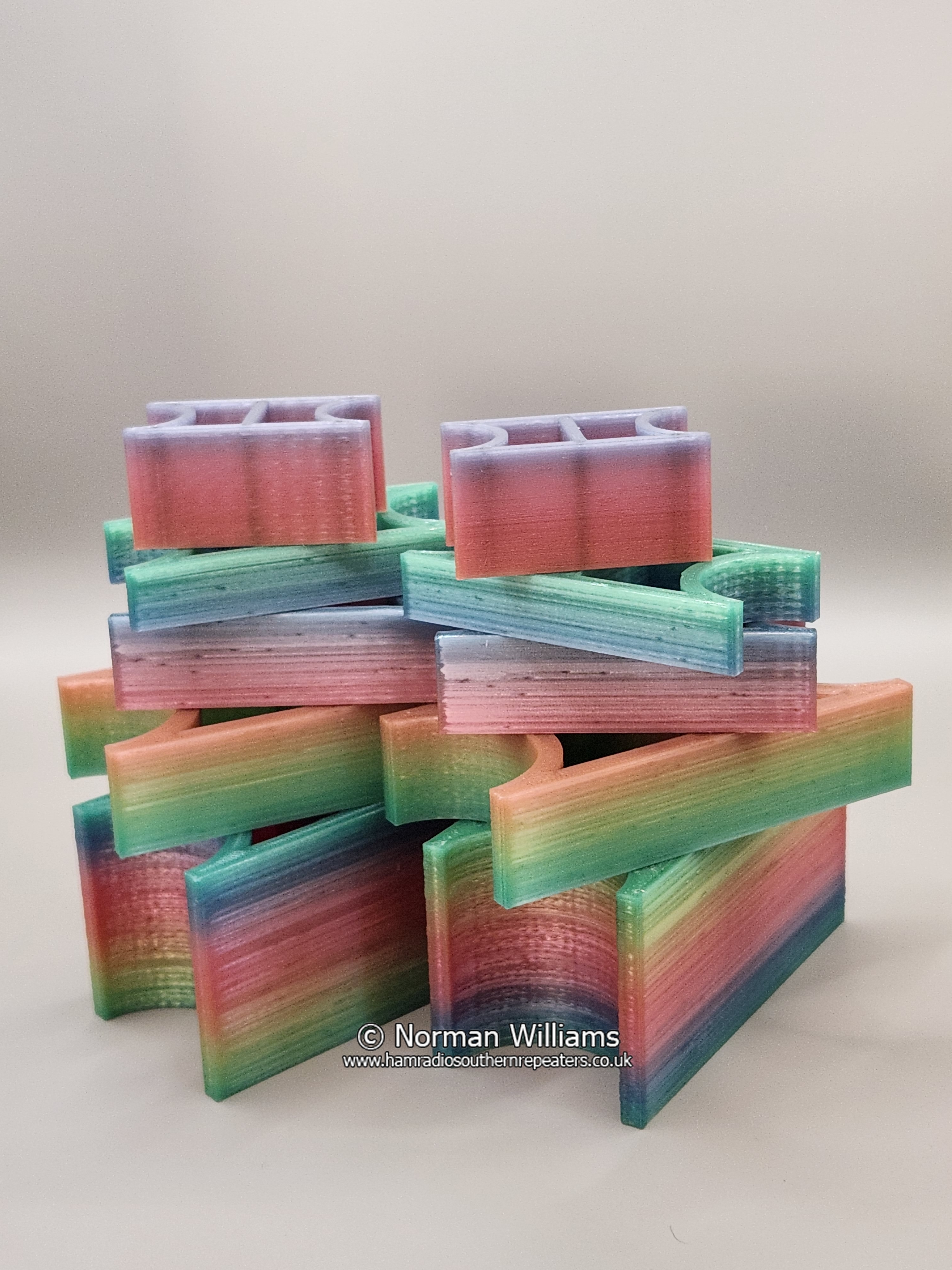

Photo 3 & 4 = Photography Stands/Platforms in UV Rainbow to use it up. Printed from 300mm/s to 500mm/s

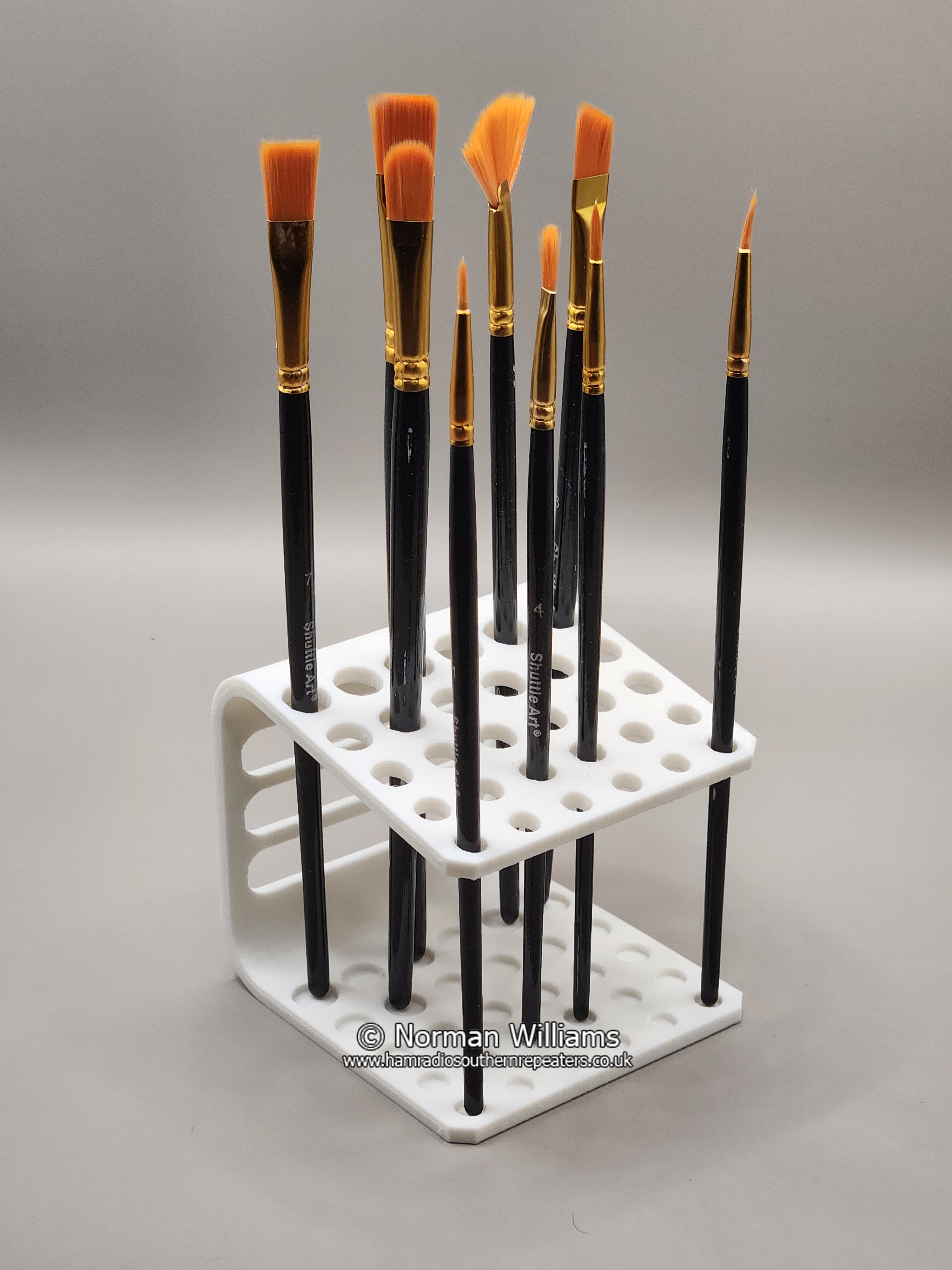

Photo 5 = Paint Brush Holder
